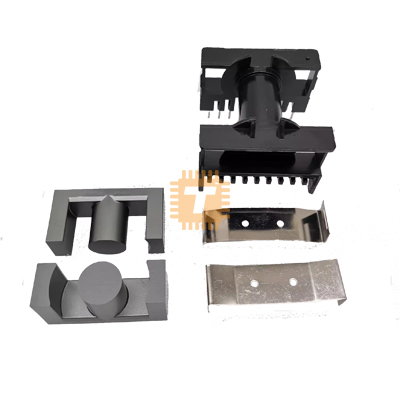

The ETD44 9+9 pin horizontal transformer bobbin with PC40 ferrite core is engineered for high-efficiency power conversion in medium to high power switch-mode power supplies (SMPS), inverters, and other high-frequency applications. Its large core area, low core loss material, and optimized winding layout make it ideal for compact yet powerful transformer designs.

Key Features:

• ETD44 Ferrite Core (PC40) – High magnetic performance with low core loss for high-frequency applications
• 9+9 Pin Bobbin – Suitable for multiple winding configurations with enhanced creepage and clearance
• Horizontal Mounting – Provides a lower profile for height-constrained designs
• Flame-Retardant Bobbin – High dielectric strength and temperature-resistant thermoplastic
• Excellent for SMPS Transformers, Inverters, and Flyback Converters

Specifications:

• Core Type: ETD44 Ferrite Core
• Core Material: PC40 (Mn-Zn Ferrite for high frequency, low loss)
• Bobbin Type: 9 + 9 pin horizontal
• Mounting Style: Horizontal (through-hole)
• Bobbin Material: Flame-retardant thermoplastic (UL 94V-0 rated)
• Core Dimensions: Approx. 44 mm (center leg diameter ~16 mm)
• Pin Count: 18 pins (9 + 9 configuration)
• Pin Pitch: Typically ~2.5 mm
• Operating Frequency: Up to 500 kHz (optimized for 20–300 kHz)
• Power Handling: Up to 300W (typical, depending on design)
• Operating Temperature: -40°C to +130°C
• Dielectric Strength: >1500V AC
• Insulation Resistance: >100 MΩ

Applications:

• Medium to high-power SMPS transformers
• DC-DC converters (push-pull, half/full bridge)
• Inverters and UPS systems
• High-frequency inductive components
• Industrial and consumer power supplies
