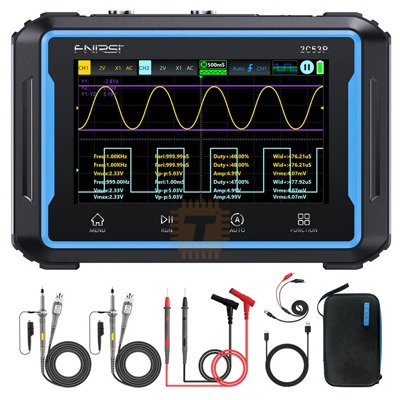

FNIRSI 2C53P is a 3-in-1 handheld instrument combining a digital oscilloscope, multimeter, and function signal generator. Designed for electronics enthusiasts, technicians, and students, it offers portability and comprehensive functionality in a compact form.

Features :

• Oscilloscope
  • Bandwidth: 50 MHz
  • Sample Rate: 250 MSa/s (Real-time)
  • Storage Depth: Up to 64 kB
  • Vertical Sensitivity: 10 mV/div to 10 V/div
  • Time Base Range: 10 ns/div to 10 s/div
  • Maximum Input Voltage: ±400 V
  • Trigger Modes: Auto, Normal, Single
  • Waveform Display Modes: XY, YT, Scroll
  • Mathematical Functions: FFT, addition, subtraction, multiplication, division, absolute value, and more
  • Coupling: AC/DC
  • Storage: Waveform screenshots can be saved and transferred via USB
• Digital Multimeter
  • DC Voltage: 1.9999 V to 1000.0 V
  • AC Voltage: 1.9999 V to 750.0 V
  • DC/AC Current: 19.999 mA to 9.999 A
  • Resistance: Up to 19.999 MΩ
  • Capacitance: Up to 99.99 mF
  • Temperature: -55°C to 1300°C (using appropriate probe)
  • Additional Functions: Diode test, continuity check
• Signal Generator
  • Frequency Range: 0 Hz to 10 MHz (sine wave), other waveforms up to 5 MHz
  • Amplitude: 0.1 V to 3.0 V
  • Waveforms: Sine, square, sawtooth, half/full wave, step, exponential rise/fall, DC, multi-tone, and sync pulse
  • Duty Cycle: Adjustable for square waves

Specifications :

• Screen: 4.3-inch IPS touchscreen with 480×272 resolution
• Material: Tempered glass with adjustable backlight
• Dimensions: Approximately 145 × 98 × 35 mm
• Weight: Around 360 g
• Power Supply: USB Type-C (5V/2A)
• Battery: Built-in 4000 mAh lithium battery, offering up to 4 hours of operation

Package Contents :

• FNIRSI 2C53P Unit
• 2 × P6100 Oscilloscope Probes
• Multimeter Probe
• Alligator Clip Probe
• USB Data Cable
• User Manual

Applications :

• Ideal For
  • Electronics Hobbyists: Compact and feature-rich for DIY projects
  • Technicians: Portable tool for on-site diagnostics
  • Students: Educational purposes in electronics labs
  • Field Work: Battery-powered operation suitable for outdoor use
