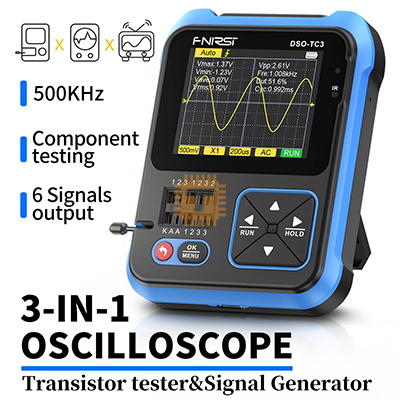

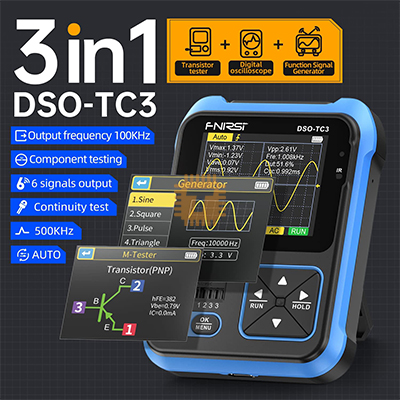

DSO-TC3 combines a digital oscilloscope, electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement, infrared decoding and other functions are skillfully integrated. It is equipped with a 2.4-inch color TFT display and a built-in rechargeable lithium battery, giving users stronger and more practical functions with good portability.

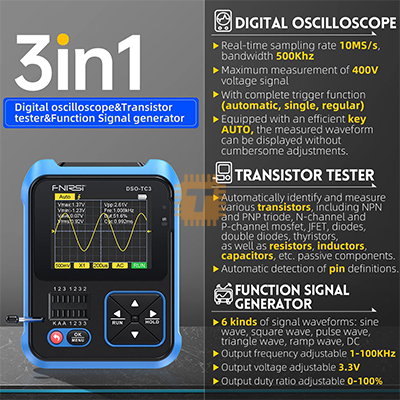

Handheld Oscilloscope:

• DSO-TC3 oscilloscope has a real-time sampling rate of 10 ms/s and a 500 kHz bandwidth.
• With a complete trigger function (single, normal, or automatic), it can be used freely for both periodic analog signals and aperiodic digital signals.
• Up to ±400V of voltage can be measured.
• Equipped with efficient one-key AUTO, the measured waveform can be displayed without cumbersome adjustment.

Transistor Tester:

• DSO-TC3 is especially suitable for fast pairing of transistors, identification of mixed surface mount and wordless components, and preliminary screening of small batch components.
• DSO-TC3 can automatically identify and measure various transistors.Including NPN and PNP transistors, N-channel and P-channel field effect transistors, junction field effect transistors, diodes, dual diodes, thyristors, resistors, inductors, capacitors, and other passive components. Automatic detection of pin definitions Automatically analyze the NEC protocol infrared code.
• DSO-TC3 can also identify device type, pin polarity, hFE, turn-on voltage, junction capacitance, and test capacitance, resistance, inductance components, etc.

Function Signal Generator:

• The signal generator has a total of six waveforms to choose from, with adjustable frequency and amplitude.
• Triangle wave: 1-10KHz/0-3.3V/50% Square wave: 1-100KHz/3.3V/50% Pulse wave: 1-100 kHz/3.3 volts/0–100% Triangle wave: 1-10KHz/0-3.3V/50% Ramp: 1-10KHz/0-3.3V/0-100?0-3.3V

Tool Box:

• Automatic detection of pin definitions
• Automatically analyze the NEC protocol infrared code.
• Other functional modes: include circuit continuity testing, 0~40V input voltage measurement, PWM output, 0~32V regulated diode measurement, DS18B20 temperature sensor measurement, DHT11 temperature and humidity sensor measurement, etc.

Specifications:

• Display Screen: 2.4-inch TFT color screen
• Supply voltage: Built-in 1500 mAh rechargeable lithium battery (included)
• Charging interface: USB Type-C, +5V
• Sample Rate: 10 msa/s
• Bandwidth: 500Khz
• Analog Bandwidth: 1ΜΩ
• Channels: 1
• Input resistance: AC/DC
• Coupling method: 400V
• Test voltage ranges: 10 mV–10 volts
• Vertical Sensitivity: 1us-10s
• Trigger mode: Auto, Normal or Single
• Trigger type: Rising edges or Falling edges
• Waveform Freeze: Yes
• Size: 79x103x31mm (Approx.)
