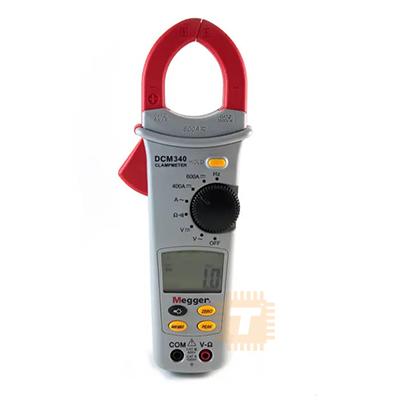

The Megger DCM340 is a highly versatile clampmeter designed for clamping round electrical cables and is ideal for use in the installation, maintenance, monitoring, or checking of a.c. or d.c. electrical systems and equipment. Use this Megger DCM 340 clamp meter to measure the amps flowing in electrical cables. It can measure up to 600 amps AC and up to 600 amps DC. Because this Megger DCM 340 comes with test leads, it can also be used to measure voltages and resistance, plus it can check cables and circuits for continuity, making it a truly versatile test instrument.

Megger DCM 340 is safety rated to IEC 61010-1 Cat III 600 V and is drop-tested to 1.2 m onto a hard floor.

Megger DCM340 Clampmeter Key Features:

• DC and AC current and voltage
• 600 A and 600 V
• Resistance and continuity
• 31⁄2 digit, 4000 count display with backlight
• High resolution digital bargraph
• Peak, min/max and data-hold functions
• Zero-offset REL mode for comparative measurements
• Frequency measurement

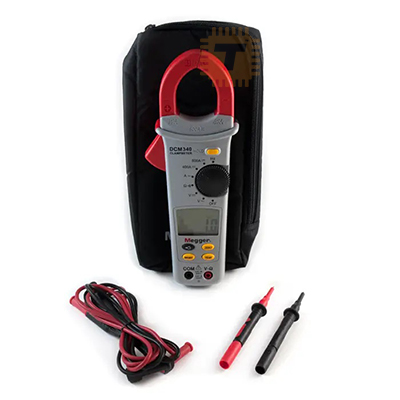

• Supplied complete with test leads and carry case
• IEC61010 CAT III 600 V
