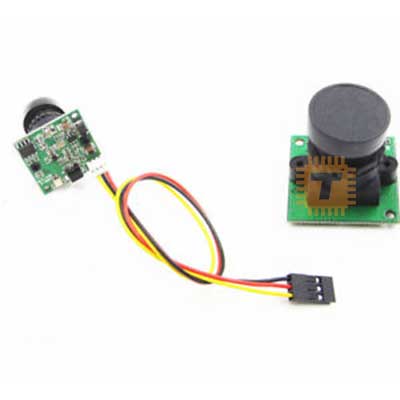

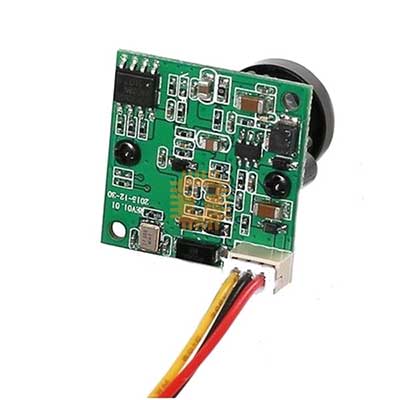

The FPV Camera with Mic 700TVL is a high-resolution analog flight camera built around a sensitive CCD image sensor. Engineered for FPV racing drones, fixed-wing aircraft, and RC ground vehicles, it combines a 2.8mm wide-angle lens with an onboard audio microphone. The CCD imaging architecture delivers natural color reproduction, low-light sensitivity down to 0.05 Lux, and robust dynamic range handling to prevent sun-glare washouts during flight.

Specifications

• Image Sensor: CCD (Charge-Coupled Device)
• Horizontal Resolution: 700 TVL (Television Lines)
• Video Format: PAL (Phase Alternating Line)
• Lens: 2.8 mm wide-angle focal length
• Video Output: 1.0Vp-p, 75 ohm composite signal
• Audio: Integrated onboard microphone
• Operating Voltage: 12V DC (±5%)
• Working Current: 70mA
• Minimum Illumination: 0.05 Lux / F2.0
• Signal-to-Noise Ratio (SNR): > 48 dB
• Automatic Gain Control (AGC): 0.25 / 0.50 / 0.75 / 1.00 adjustable (Up to 55 dB max)
• Highlight Compensation (HLC): Supported
• White Balance: Open / Close selectable
• Electronic Shutter: 1/50 (1/60) to 1/100,000 second
• Gamma Correction: 0.45 / 1.0

Interface and Wiring Guide

• VCC (Red): 12V DC Power Input
• GND (Black): Common Ground Reference
• VIDEO (Yellow): 75Ω Analog Composite Video Signal (Connects to OSD or VTX video in)
• AUDIO (White): Line/Mic-Level Audio Signal (Connects to VTX audio in)

Key Features

• High-Sensitivity CCD Sensor: Offers superior low-light performance (0.05 Lux) and dynamic range compared to standard CMOS sensors, eliminating "jello effect" vibrations and handling transition between bright sky and dark ground smoothly.
• Balanced 2.8mm Field of View: The 2.8mm lens provides a wide, natural field of view without severe fisheye edge distortion, making it easier to judge distances and track obstacles.
• Integrated Audio Microphone: Streams real-time motor, wind, and propeller sound straight to your FPV goggles or ground monitor.
• Highlight Compensation (HLC): Suppresses localized intense glare (such as head-on sunlight or bright artificial lights) to preserve surrounding image detail.
• Compact and Lightweight Form Factor: Fits cleanly into standard FPV camera mounting brackets, micro pan-tilt gimbals, and RC canopies.

Common Applications

• FPV Racing and Freestyle Drones: 5-inch and long-range quads requiring zero-latency analog video and audio feedback.
• RC Airplanes, Gliders, and Wings: Cockpit pilot view with ambient wind and throttle audio monitoring.
• RC Cars, Trucks, and Boats: Low-latency first-person driving systems with wide-angle spatial awareness.
• Remote Robotics and Mobile Surveillance: Inspection rovers, pan-tilt turrets, and wireless field monitoring units.

Usage Tips

• Operating Voltage Requirement: This camera requires a 12V DC (±5%) power supply. Powering from a 5V rail will result in no video, while connecting directly to a 4S/6S LiPo battery (14.8V–25.2V) without a 12V BEC/regulator will permanently damage the internal CCD circuitry.
• Ground Loop and Noise Prevention: Power line ripple from high-power brushless ESCs can introduce horizontal noise lines into CCD video. Power the camera from a filtered 12V BEC or an LC-filter power tap on your flight controller/PDB.
• Display Standard Compatibility: Confirm that your FPV monitor, goggles, or analog capture card are set to PAL mode to avoid vertical screen rolling or loss of colour sync.
