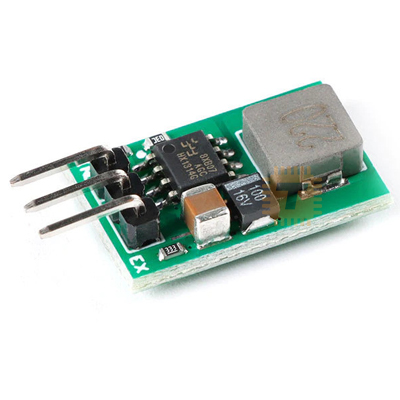

The HX1314 Step-Down Buck Module is a small DC-DC step-down voltage regulator with high conversion efficiency and low heat dissipation. The DC input is from 5.5 to 32 Volts, and the stable output is 5 Volts with a current of 1 Amp.This module is an analog of the L78xx linear regulators in TO220 package. The hole pitch on the module is exactly the same as the pin pitch of the L78xx series linear regulators, which makes it easy to replace.

Features :

• Wide Input Voltage Range: Operates with input voltages ranging from 5.5V to 32V DC, making it versatile for different power sources.
• Stable Output Voltage: Provides a fixed output of 5V ±0.1V, ideal for powering 5V logic circuits and microcontrollers.
• High Conversion Efficiency: Achieves up to 93?ficiency, reducing energy loss and heat generation compared to linear regulators.
• Continuous Output Current: Delivers up to 1A continuous output current, suitable for most low-power applications.

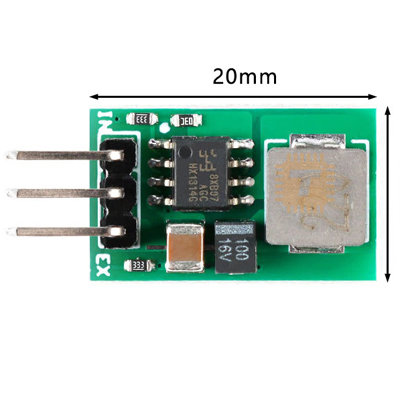

• Compact Design: Measures 20mm x 12mm x 5mm and weighs approximately 2 grams, facilitating easy integration into space-constrained projects.
• Thermal and Overcurrent Protection: Includes built-in thermal shutdown and overcurrent protection to safeguard connected devices.

Specifications :

• Input Voltage: 5.5V to 32V DC
• Output Voltage: 5V ±0.1V
• Output Current: Up to 1A continuous
• Efficiency: Up to 93%
• Dimensions: 20mm x 12mm x 5mm
• Weight: 2 grams
• Operating Temperature: -40°C to +85°C

Applications :

• Microcontroller Power Supply: Ideal for powering microcontrollers like Arduino and Raspberry Pi from higher voltage sources.
• Battery-Powered Projects: Suitable for battery-operated devices requiring efficient voltage regulation.
• Portable Electronics: Can be used in portable electronics that need a stable 5V supply.
• LED Drivers: Effective in driving 5V LEDs in various lighting applications.
