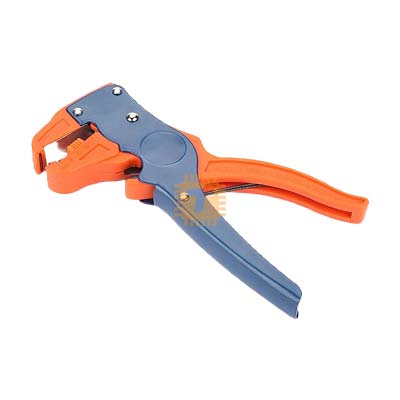

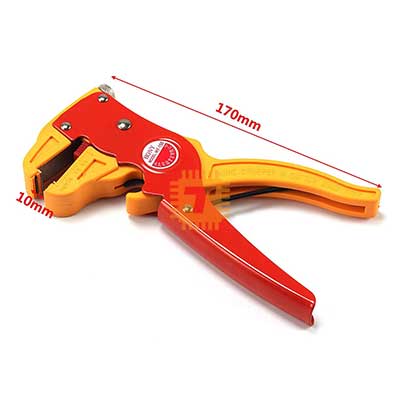

The HY-150 is a professional-grade, 2-in-1 automatic wire stripping and cutting tool. Unlike manual strippers that require matching the wire gauge to a specific slot, the HY-150 features an intelligent self-adjusting mechanism that automatically clamps down and strips insulation smoothly based on the core thickness. This makes it an incredibly fast, efficient solution for stripping single or multi-strand cables without nicking the inner copper conductors.

Specifications

• Model: HY-150
• Tool Function: 2-in-1 Wire Stripper and Cutter
• Supported Wire Sizes: 0.2 square millimeters to 6.0 square millimeters (24 AWG to 10 AWG equivalent)
• Stripping Length Range: Adjustable from 2mm to 20mm
• Blade Architecture: Replaceable tension blade system
• Body Construction: Lightweight, heavy-duty alloy body with carbon steel mechanism
• Grip Profile: Ergonomic, non-slip insulated handles

Key Features

• Self-Adjusting Mechanism: Automatically adapts to different wire cross-sections upon squeezing, preventing the jaws from scraping or cutting the underlying copper strands.
• Adjustable Length Stop: Features a built-in slider guide to set a precise insulation strip length (up to 20mm), ensuring uniform connections when prepping wire batches for terminal blocks.
• Tension Adjustment Dial: Includes a simple pressure thumbwheel to increase or decrease jaw force depending on the stiffness or thickness of the outer insulation jacket.
• Integrated Wire Cutter: Houses a secondary, high-hardness cutting blade beneath the stripping jaws for clean cuts through copper and aluminum wires.
• Ribbon Cable Compatibility: The wide jaw profile makes it ideal for handling flat ribbon cables, multiple bundled strands, or broad hat cable jackets.

Component Guide

• Stripping Jaws: Upper self-adjusting clamping teeth that grip and slice the insulation jacket.
• Micro-Adjustment Knob: Tension dial used to calibrate blade pressure for ultra-thin or overly tough plastic jackets.
• Length Stopper: Adjustable plastic gauge bar that keeps wire stripping depths perfectly consistent.
• Wire Cutter Blades: Embedded lower shearing teeth designed for clean wire clipping.

Common Applications

• Electronics Assembly: Quickly stripping hookup wire and multi-conductor ribbon cables for custom circuit prototyping.
• Control Panel Building: Prepping clean wire interfaces for industrial DIN rail terminals, PLCs, and electrical enclosures.
• Robotics Projects: Wiring power lines, motor leads, and sensor connections on mobile rover chassis.
• Home Automation: Installing or repairing smart switches, security systems, and household appliances.

Usage Tips

• Insulation Tuning: If the jaws slip on slick, rubbery insulation, turn the adjustment dial slightly clockwise (+) to increase gripping power. For soft or fragile insulation, turn it counter-clockwise (-) to avoid squeezing into the core wire.
• Cutting Constraints: Use the lower integrated cutter for soft copper and aluminum electrical wires only. Squeezing down on hard steel wires, spring steel, or iron nails will chip or dull the cutting blades.
• Clean-Out Maintenance: Periodically blow away small fragments of stripped plastic insulation that can become trapped inside the spring mechanism to prevent jaw jamming.

NOTE: Colours may differ depending on stock availability.

Video Tutorial: How to use
