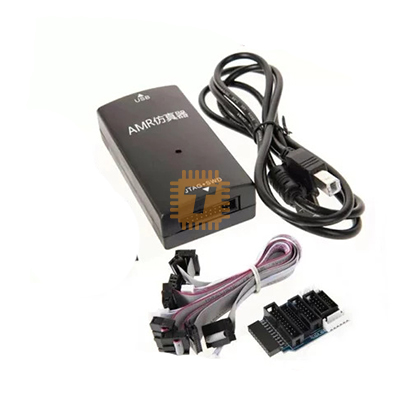

Features of JLINK V9:

• The main control chip is STM32F205, without losing the firmware, and the hardware has been upgraded to the latest version of V9.2
• It can provide 3.3V voltage 0.8A current for the development board (The second pin)
• Support standard JTAG interface and 2-wire SWD debugging interface. The speed can reach 20M (JTAG)/15M (SWD) per second
• It supports debugging of all ARM chips, MDK or IAR, and compilation environment IDE supported by other standard JLinks
• Original firmware, full automatic firmware upgrade

J-Link Support for ARM Kernel:

• ARM7TDMI (Rev 1)
• ARM7TDMI (Rev 3)
• ARM7TDMI-S (Rev 4)
• ARM720T * ARM920T
• ARM926EJ-S
• ARM946E-S
• ARM966E-S
• ARM11
• Cortex-M3

The multifunctional conversion board provides the following interfaces:

• Interface 1: 2.54 pitch 20 pin spacing Angle seat (Can be directly connected to JTAG seat)
• Interface 2: 2.54 pitch 20 pin straight socket
• Interface 3: 2.0 pitch 20 pin straight socket
• Interface 4: 2.54 pitch 14 pin straight socket
• Interface 5: 2.54 pitch 10 pin straight socket
• Interface 6: 2.0 pitch 10 pin straight socket
• Interface 7: 2.54 pitch 6 pin straight socket
• Interface 8: 2.54 pitch 4 pin straight socket
