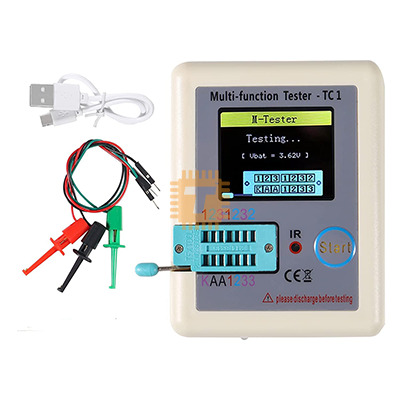

The LCR-TC1 Transistor Tester Multimeter is used for detecting NPN and PNP transistors, capacitors, resistors, diodes, triodes, N-channel and P-channel MOSFETs, IGBTs, JFET, triac and battery, resistor and capacitor and other components, etc.

Features:

• It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.
• One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.
• Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.

Specifications:

• Display: 1.8 inch TFT Screen
• Diode Range: < 4>
• Zener Diode : Transistor Detect Area: 0.01-4.5V
• Zener Diode Detect Area: 0.01-30V
• Triac Range: IGT < 6mA>
• Capacitance: 25pF-100mF
• Resistor: 0.01-50MΩ
• Inductance: 0.01mH-20H
• Battery: 0.1-4.5V
• Power Mode: Rechargeable Lithium Battery (Included)
