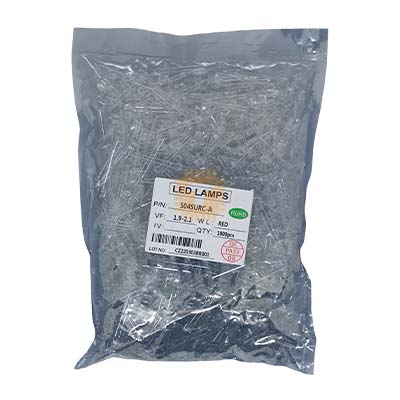

The LED 5mm Red Clear Pack Good Quality (1000Pcs) is a high-volume supply of standard T-1 3/4 (5mm) through-hole light-emitting diodes engineered for high-visibility warning systems, optical instrumentation, custom illuminated signs, status panels, and commercial electronics manufacturing. Utilizing high-efficiency AlGaInP (Aluminum Gallium Indium Phosphide) semiconductor die technology paired with a crystal-clear, non-tinted epoxy lens, each diode produces a focused, high-intensity red beam (620nm–630nm) with luminous output ranging from 4,000 to 8,000 mcd at a narrow 20° to 25° beam angle. With a low forward voltage requirement (1.9V–2.2V), standard 2.54mm lead pitch, and low power consumption, this bulk pack is optimized for production lines, educational STEM kits, and high-density PCB arrays.

Specifications

• Package Quantity: 1000 Pieces per Bulk Pack (Moisture-Barrier Anti-Static Bag)
• LED Size / Form Factor: Standard T-1 3/4 (5 mm Diameter Base)
• Emitted Color: Deep Red / Brilliant Red
• Dominant Wavelength (λ_d): 620 nm to 630 nm (Peak: ~625 nm)
• Lens Type: Water-Clear / Non-Tinted Transparent Optical Epoxy
• Luminous Intensity (I_v): 4,000 mcd to 8,000 mcd (Typical at I_F = 20 mA)
• Viewing / Beam Angle (2θ_1/2): 20° to 25° (Narrow, high-focus spotlight beam)
• Forward Voltage (V_F):
  • Typical: 1.9 V to 2.1 V DC
  • Maximum: 2.4 V DC (at I_F = 20 mA)
• Continuous Forward Current (I_F): 20 mA (Recommended operating current: 15 mA to 20 mA)
• Peak Pulsed Forward Current (I_FP): 50 mA to 100 mA (Duty cycle 1/10 at 1 kHz)
• Reverse Breakdown Voltage (V_R): 5.0 V Max.
• Reverse Leakage Current (I_R): ≤ 10 μA (at V_R = 5 V)
• Power Dissipation (P_D): Approx. 50 mW to 60 mW per LED
• Lead / Terminal Type: Radial Through-Hole (THT) Tinned Copper / Silver Alloy Leads
  • Anode Lead (+): Longer Pin (Approx. 27 mm to 29 mm)
  • Cathode Lead (-): Shorter Pin (Approx. 25 mm to 27 mm) with Flat Rim Base
• Lead Spacing / Pitch: Standard 2.54 mm (0.1 Inch Breadboard Pitch)
• Operating Temperature Range: -40°C to +85°C
• Soldering Temperature Tolerance: 260°C for max. 3 to 5 seconds (≥ 2 mm distance from base)

Features

• High-Intensity Focused Beam: Delivers strong luminous output up to 8,000 mcd through a 20°–25° viewing angle, offering clear daylight visibility and long-range throw.
• Optical Water-Clear Lens: Transparent epoxy encapsulation allows pure spectral transmission without color filtering or internal light attenuation.
• Efficient AlGaInP Semiconductor Die: Offers high luminous efficiency with low forward voltage drop (1.9V–2.1V), generating minimal heat during continuous operation.
• Standardized Polarity Markers: Features lead-length differentiation (longer anode) and a flat-edge notch on the cathode base for rapid, error-free assembly.
• Economical 1000-Piece Value Pack: High-volume packaging tailored for manufacturing lines, makerspaces, school STEM laboratories, and repair shops.

Common Applications

• Alarm & Hazard Warning Beacons: High-visibility alert strobes, security system trip indicators, and industrial fault alarms.
• Automotive & Model Vehicle Lighting: Brake lights, tail lamps, and emergency beacons on RC models, drones, and custom automotive gauge clusters.
• Optical Sensors & Light Barriers: Transmitter emitter for phototransistor break-beam sensors and optical encoders.
• Illuminated Displays & Signage: High-contrast text backlighting, dot-matrix message boards, and decorative light arrays.
• Microcontroller & STEM Prototyping: Breadboard logic circuits, status readouts, and timing experiments using Arduino, ESP32, or Raspberry Pi.

Usage Tips

• Current-Limiting Resistor (MANDATORY): Never connect the LED directly across a voltage supply without a series resistor to prevent thermal runaway and junction failure:
  • Calculate using: R = (V_Supply - V_F) / I_F
  • For a 5V DC Supply (I_F = 15 mA, V_F = 2.0 V): R = (5.0V - 2.0V) / 0.015A = 200 Ω → Use a standard 220Ω (1/4W) resistor.
  • For a 3.3V DC Supply (I_F = 15 mA, V_F = 2.0 V): R = (3.3V - 2.0V) / 0.015A ≈ 86.7 Ω → Use a standard 100Ω (1/4W) resistor.
  • For a 12V DC Supply (Single LED at 15 mA): R = (12.0V - 2.0V) / 0.015A ≈ 667 Ω → Use a standard 680Ω (1/4W) resistor.
  • For a 12V DC Supply (4 LEDs in Series at 15 mA): R = [12.0V - (4 × 2.0V)] / 0.015A = 4.0V / 0.015A = 267 Ω → Use a standard 270Ω to 330Ω (1/4W) resistor.
• Identifying Polarity:
  • Positive (+ / Anode): Longer lead wire.
  • Negative (- / Cathode): Shorter lead wire, flat-notched edge on the epoxy base rim, and larger internal lead-frame anvil.
• Soldering Precautions: Maintain soldering iron temperatures between 260°C and 300°C and complete soldering within 3 seconds per lead, keeping the iron tip at least 2mm away from the epoxy body.
• Storage Recommendations: Keep unused bulk LEDs sealed in their anti-static moisture-barrier bag in a cool, dry location to preserve lead solderability.
