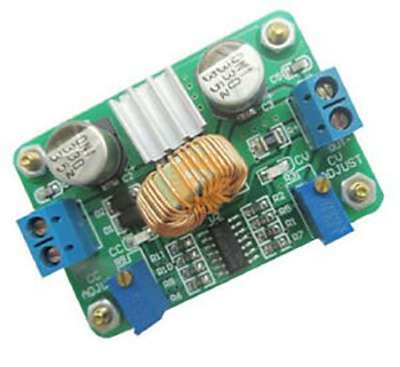

Features :

• In+: Input positive
• In-: Input negative
• Out+: Output positive
• Out-: Output negative
• Weight: 33g
• Dimensions: 56 *38 *23mm(length*width*height)
• Input voltage: 5-30V(maximum input voltage 32V)
• Output voltage: 1.25-26V (step-down mode, Inputs must be greater than the output above 2 v)
• Output current: 0.15-2A Adjustable output(maximum output current 2.6A
• Ripple frequency: About 52 KHz
• Ripple peak to peak value : 50mv (typical value)

Function:

• Voltage Indicator(CV): The module is in the constant voltage mode.
• Current Indicator(CC) : The module is in the constant current mode.
• Voltage potentiometer: The multimeter adjusted to voltage is connected the module output. Adjust potentiometer clockwise, the output voltage increases. Adjust potentiometer counter-clockwise, the output voltage drops. The multimeter will display voltage. (In constant voltage working state)
• Current potentiometer: The multimeter adjusted to current is connected the module output. Adjust potentiometer clockwise, the output current increases. Adjust potentiometer counter-clockwise, the output current drops. The multimeter will display current.(In constant current working state).
