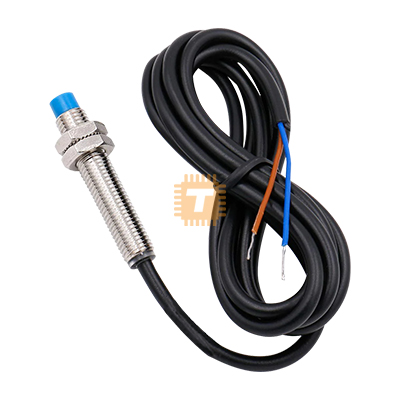

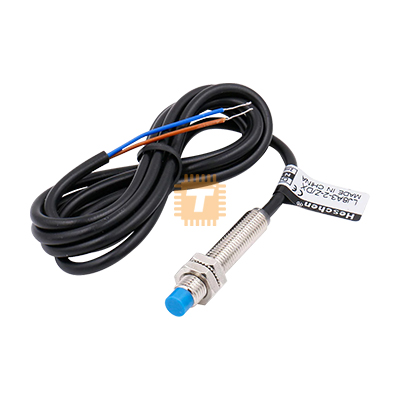

An inductive proximity/distance sensor that can detect metallic objects at close range. As soon as a metal object is detected, the signal wire and ground are connected with a transistor. If no object is detected, the signal wire takes the voltage of the power supply through the built-in pull-up resistor. For example, the sensor can be used in 3D printers.

Specifications:

• Supply voltage: 6 - 36V DC
• Signal voltage: 6 - 36V
• Maximum signal current (sink): 200mA
• Measuring range: 0 - 2mm
• Output type: PNP NC (normally close)
• Internal pull-up resistance: 10 k
• Measuring method: Inductive
• Cable length: ~1m

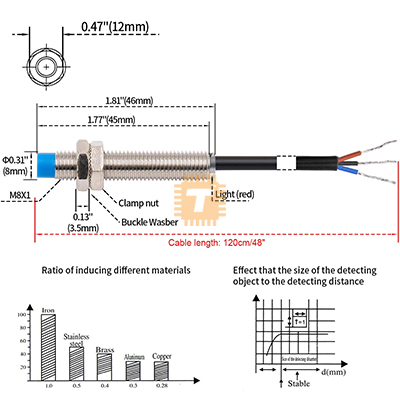

• Thread: M8
• Dimensions: 8 x 8 x 45mm (Approx.)
