Specifications:

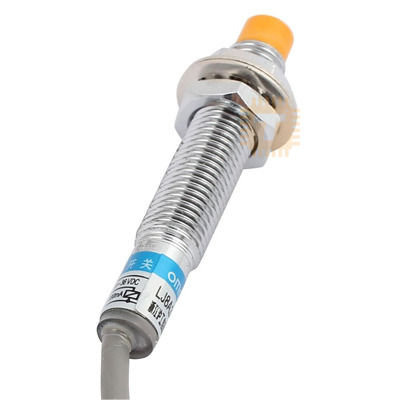

• Model number: LJ8A3-2 series
• External dimensions: M8x50mm
• Installation type: Non-shielded
• Detection distance: 2mm
• Setting distance: 0-1.6 mm
• Supply voltage: 6-36VDC
• Output current: 300mA max
• Standard detected object: Mild steel (8x8x1mm)
• Sensing object: Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
• Response frequency: 500Hz
• Matched mounting bracket: M8 mounting bracket
• Output indication: Red LED
• Short-circuit protection: No
• Insulation resistance: 50MΩ min (between charging part and housing)
• Dielectric strength: 1000Vac, 1min (between charging part and housing)
• IP Rating: IP65
• Operating temperature: -25 to 70 ℃ (13 to 158 ℉)
• Cable length: 1.2m, PVC cable
• Material Case: Brass-nickel plated, Sensing surface: ABS
