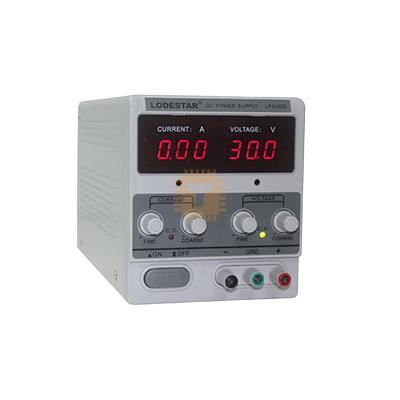

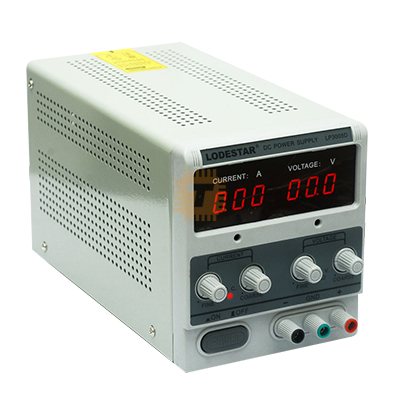

The LODESTAR LP3005D is a high‑precision, single-channel DC power supply delivering up to 30 V and 5 A of regulated output. It’s ideally suited for laboratory, educational, repair, and industrial use where reliable and smooth DC power is needed.

Specifications

• Output Voltage Range: 0 – 30 V (continuously adjustable)
• Maximum Output Current: 0 – 5 A
• Ripple & Noise: Typically ≤ 0.5 mV rms up to 3 A; ≤ 3 mV rms at full load
• Voltage & Current Accuracy: ± 0.5 % reading plus 2 digits
• Load Regulation: ≤ 0.3 % (tested at 30 V / 3 A)
• Display Resolution: 0.1 V for voltage, 0.01 A for current

Features

• Constant Voltage (CV) and Constant Current (CC) Modes with built-in regulation switches
• Built-in Protection: Over-current, short-circuit, over-temperature, and reverse polarity safeguards
• Cooling: Fan-assisted heat dissipation with temperature control
