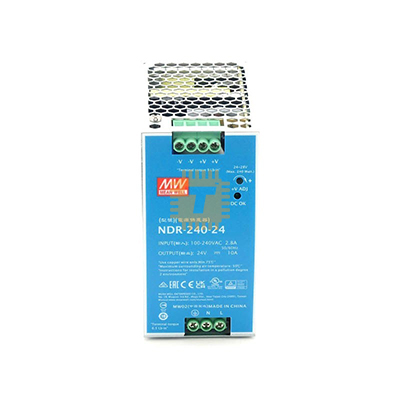

The MEAN WELL NDR-240-24 is a high-performance DIN rail–mounted AC-DC power supply designed for industrial automation, control panels, and machine systems. Delivering 24V DC at 10A (240W), this power supply offers excellent efficiency, reliability, and safety in a compact DIN rail form factor.

Engineered to meet industrial standards, the NDR series is ideal for continuous operation in demanding environments such as factories, CNC machines, PLC panels, and automation systems.

Key Features

• 240W High Power Output: Stable 24V DC supply with up to 10A current
• DIN Rail Mount Design: Easy and secure installation on TS-35/7.5 or TS-35/15 rails
• Wide AC Input Range: Supports global AC inputs for versatile deployment
• High Efficiency & Low Power Loss: Reduced heat generation and energy savings
• Built-In Protections: Overload, overvoltage, overtemperature, and short-circuit protection
• Industrial-Grade Reliability: Designed for long service life and continuous operation
• Slim Profile: Saves space in electrical control panels

Specifications

• Manufacturer: MEAN WELL
• Series: NDR
• Model: NDR-240-24
• Output Power: 240W
• Output Voltage: 24V DC
• Output Current: 10A
• Input Voltage: 90–264VAC / 127–370VDC
• Frequency Range: 47–63Hz
• Efficiency: Up to ~89%
• Output Voltage Adjustment: ±10%
• Cooling: Convection air cooling
• Mounting Type: DIN rail (TS-35)
• Operating Temperature: −20°C to +70°C
• Safety Standards: UL, TUV, CE compliant

Applications

• Industrial automation and control panels
• PLC and HMI power systems
• CNC machines and routers
• Factory machinery and process control
• Robotics and motion control systems
