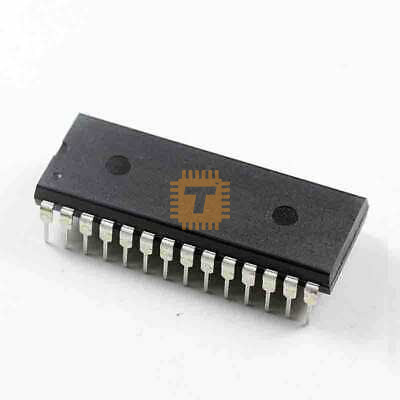

The MX7828 is highspeed, multi-channel analog-to-digital converters (ADCs). The MX7828 have four analog input channels, while the MX7824 have eight channels. Conversion time for all devices is 2.5µs. The MX7828 also feature a 2.5V on-chip reference, forming a complete high-speed data acquisition system. All four converters include a built-in track/hold, eliminating the need for an external track/hold with many input signals. The analog input range is 0V to +5V, although the ADC operates from a single +5V supply. Microprocessor interfaces are simplified by the ADC’s ability to appear as a memory location or I/O port without the need for external logic. The data outputs use latched, three-state buffer circuitry to allow direct connection to a microprocessor data bus or system input port. The MX7828 are pin compatible with Analog Devices’ AD7824 and AD7828. The MX7828, which feature internal references, are also compatible with these products.

Features:

• One-Chip Data Acquisition System
• Four or Eight Analog Input Channels
• 2.5µs per Channel Conversion Time
• Internal 2.5V Reference (MAX154/MAX158 only)
• Built-In Track/Hold Function
• 1/2LSB Error Specification
• Single +5V Supply Operation
• No External Clock

Package: PDIP-28

Datasheet: Datasheet
