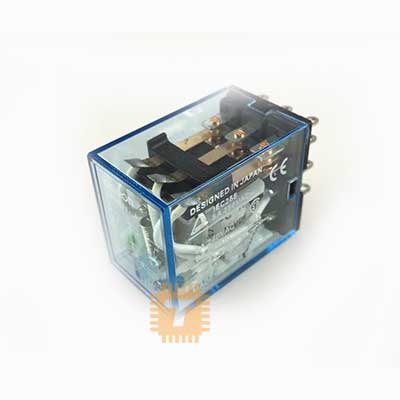

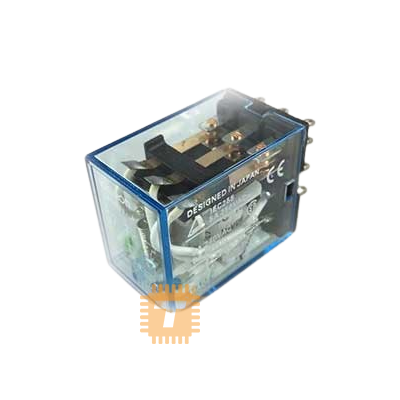

The Omron MY3N-J is a high-performance 11-pin electromagnetic relay designed for industrial and automation control applications. With a 3-pole double-throw (3PDT) configuration and 5A contact rating, it ensures reliable switching of AC and DC loads. This version features a 240VAC coil, making it ideal for AC-powered control systems.

Key Features:

• Coil Voltage: 240VAC
• Contact Configuration: 3PDT (3 poles, double-throw)
• Contact Rating: 5A @ 240VAC / 28VDC
• 11-Pin PCB Mount for easy integration
• Durable and Reliable for industrial and commercial use
• Versatile Applications: automation, control panels, machinery, and electronic circuits

Specifications:

• Model: MY3N-J
• Coil Voltage: 240VAC
• Contact Current: 5A
• Contact Voltage: 240VAC / 28VDC
• Poles/Throws: 3PDT
• Mounting Type: PCB Through-Hole (11 pins)
• Insulation Resistance: ≥100MΩ (500VDC)
• Dielectric Strength: 2500VAC (coil to contact)
• Operate Time: ≤20ms
• Release Time: ≤10ms

Applications:

• Industrial automation and control circuits
• Motor control and switching
• PCB signal control and logic circuits
• Machinery and equipment automation
• Home and commercial electrical projects requiring AC coil relays
