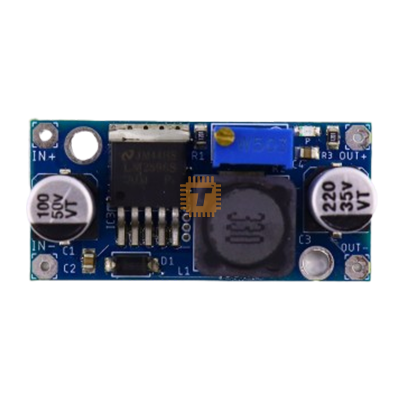

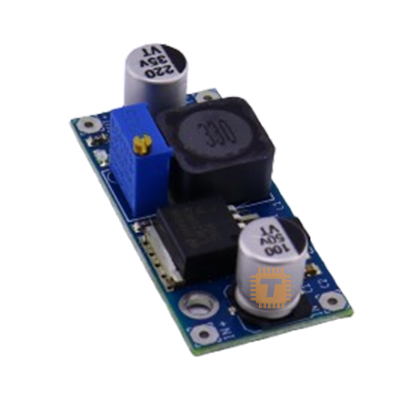

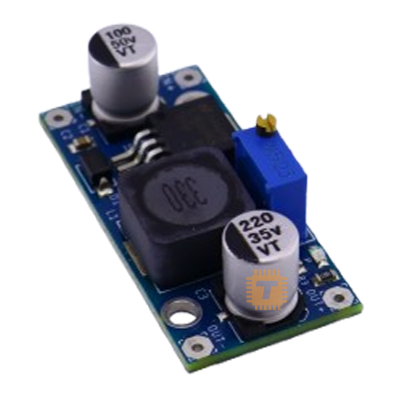

The Optimus LM2596 Buck Converter is a compact, high-efficiency voltage regulator module designed to step down a DC voltage to a lower, user-adjustable level. It is based on the LM2596 switching regulator IC, which allows for efficient power conversion with low heat generation and stable output.

This module features an onboard potentiometer for output voltage adjustment, screw terminals for easy wiring, and onboard capacitors for filtering and stability. With a wide input range and up to 3A output capacity (with heat dissipation), it is ideal for powering microcontrollers, sensors, motors, and other DC-powered electronics in both educational and professional projects.

Features:

• Built-in potentiometer for easy voltage adjustment
• Compact and lightweight design
• Suitable for Arduino, Raspberry Pi, ESP32, and other DC loads

Specifications:

• Input Voltage: 4V to 40V DC
• Output Voltage: 1.25V to 37V DC (adjustable)
• Maximum Output Current: 2A continuous (3A peak with heatsink)
• Efficiency: Up to 92%
• Switching Frequency: 150 kHz
• Voltage Regulation: ±1%
• Load Regulation: ±0.5%
• Output Ripple: < 30mV>

Applications:

• Arduino and microcontroller power supply
• Battery-powered systems
• LED lighting projects
• Robotics and IoT devices
• DIY electronics and educational kits
