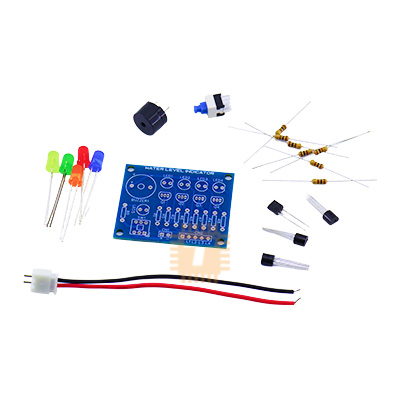

The Water Level Sensor DIY Kit is an easy-to-build electronic project designed to detect and indicate water levels in tanks, reservoirs, and containers. Using a simple transistor-based sensing method, the kit detects water at different levels and activates corresponding LED indicators to visually display the tank status.

The circuit operates by utilizing the conductivity of water to trigger BC547 NPN transistors, allowing the LEDs to illuminate progressively as the water level rises. When the tank reaches the full level, an onboard buzzer is activated to provide an audible alert. This hands-on project is ideal for learning basic electronics, transistor switching, and sensor-based circuits while offering a practical real-world application.

Specifications

• Operating voltage: 5V DC
• Detection method: Conductive water sensing
• Indicators: Multi-colour LED level indication
• Alert system: Buzzer for full tank indication
• Transistor type: BC547 NPN
• Circuit type: Water level indicator
• Power source: 5V battery or DC supply
• Components: Easy to solder, beginner-friendly

Key Features

• Multi-level water indication using conductive water sensing
• Visual indication through coloured LEDs
• Full tank alert using an onboard buzzer
• Uses BC547 NPN transistors for level detection
• Simple transistor-based circuit without programming

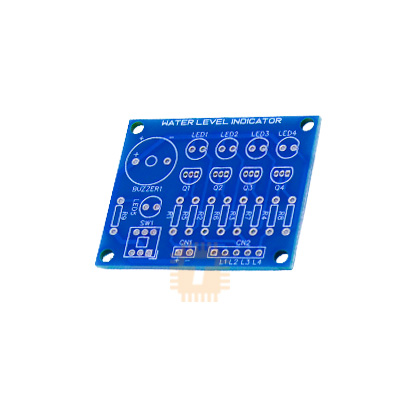

• Compact PCB design for easy assembly
• Beginner-friendly DIY electronics project
• Low power consumption and efficient operation

Typical Applications

• Domestic water tank monitoring
• Water storage container level indication
• Educational demonstrations in schools and laboratories
• DIY electronics learning projects
• Small reservoir and aquarium monitoring
• Rainwater collection systems
• Basic liquid level detection applications
