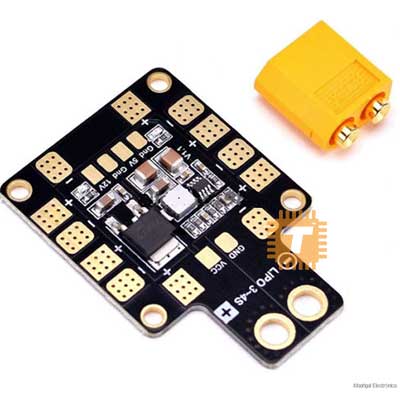

Features:

• 2oz copper, 4-layers and 1.6mm PCB
• Built-in XT60 Socket
• Total 6 pairs ESC solder tabs are fit for H or X type frame
• 5V and 12V Output LED indicators
• Regulated 5V and 12V outputs
• Short circuit tolerant

Specifications:

• Input voltage range: 9 - 18V DC (3S-4S LiPoly operation)
• Output continuous current: 25Ax4 or 15Ax6
• Output Peak current (10 seconds/minute): 30Ax4 or 20Ax6
• BEC 5V output: 5V/2A (Max.2.5A 10s/minute)
• Output Ripple: 40mV (VIn= 16V, VOut= 5V@2A load)
• Short-circuit tolerant: 5 seconds/minute
• BEC 12V output (4S LiPoly, 13~18V DC): 12V/500mA (Max.0.8A 5s/minute)
• BEC 12V output (3S LiPoly): =3S LiPoly voltage - 1V
• Dimensions: 36 x 50 x 4 mm (without XT60)
• Mounting: 30.5 x 30.5mm, Φ3mm
• Weight: 7.5g (w/o XT60), 11g (w/ XT60)
