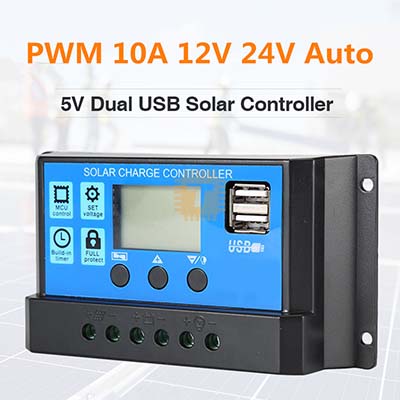

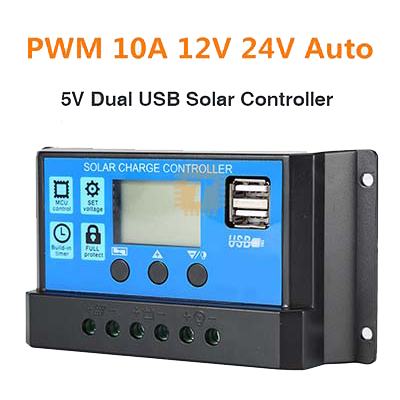

controller 24V/12V PWM Auto Solar Charge Controller 5V Output Solar Cell Panel Regulator PV Home With LCD Dual USB

This is a new solar controller. It can fully meet your home photovoltaic system (including home lighting system) requirements. It can recognize 12V and 24V lead acid and gel batteries automatically.

If you want to use another type of battery, you need to set it up. such as lithium battery charging (full protection 12.2V, discharge 9.5V, restart 11.5V).

10A:

• if your battery is 12V ,the max solar panel input is 25V 120W
• if your battery is 24V ,the max solar panel input is 50V 240W

Features:

• Build-in industrial microcontroller.

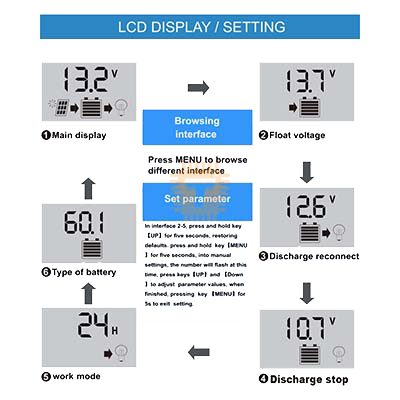

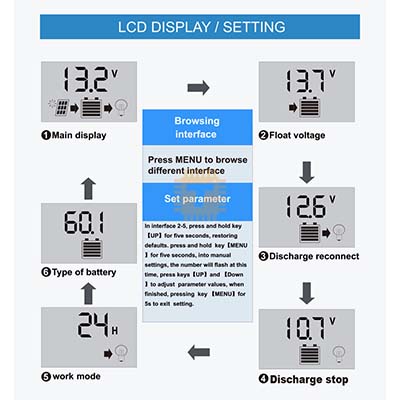

• Big LCD display,all adjustable parameter.
• Fully 4-stage PWM charge management.
• Build-in short-circuit protection,open-circuit protection,reverse protection,overload protection.
• Dual mosfet Reverse current protection ,low heat production.

Specifications:

• Model: ICharger PWM N1210
• Battery Voltage: 12V 24V Auto
• Charging Current: 10A
• Discharging Current: 10A
• Max Solar input: 50V(for 24V battery) 25V(for 12V battery)
• Equalization: 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
• Float charge: 13.7V(default,adjustable)
• Discharge stop: 10.7V(default,adjustable)
• Discharge reconnect: 12.6V(default,adjustable)
• USB output: 5V/3A
• Self-consume: <10mA>
• Operating temperature:-35°C~+60°C

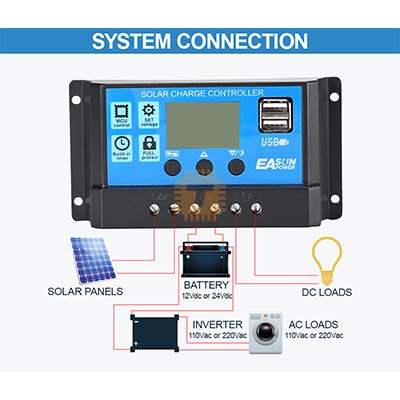

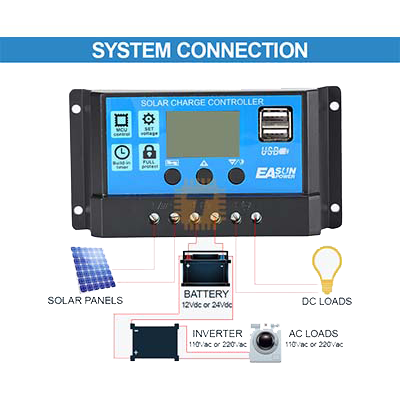

Connection:

• Connect the battery to the charge regulator - plus and minus.
• Connect the photovoltaic module to the regulator - plus and minus.
• Connect the consumer to the charge regulator - plus and minus.

NOTE: The reverse order applies when deinstalling!

An improper sequence order can damage the controller!
