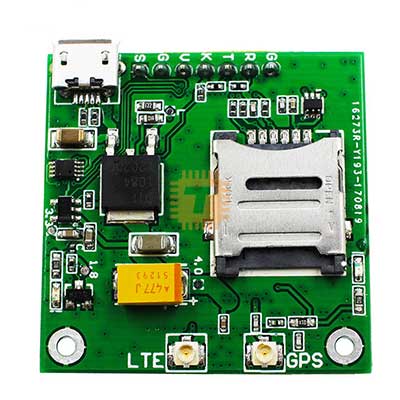

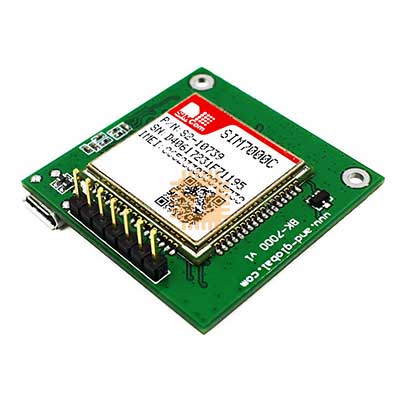

SIM7000C 4G NB-IoT / 4G eMTC / EDGE / GPRS / GNSS LTE Module (MD0339) Products
We are sorry but the product is out of stock, please check back after few days.
| Name | SIM7000C 4G NB-IoT / 4G eMTC / EDGE / GPRS / GNSS LTE Module |
| Code | MD0339 |
| Price | Rs.11,650.00 |
| In Stock | No |
| Package | MODULE |
Product Details
Features:
- Support Tri-Band 4G FDD-LTE B3/B8/B20
- Support 2G GPRS/EDGE 900/1800Mhz
- Output power
- GSM900: 2W
- DCS1800: 1W
- Control Via AT Commands
- Supply voltage range: 3.0V— 4.3V, Typ: 3.8V
- Operation temperature: -40,0 to +85°C
- Dimensions: 24 X 24 X 2.6mm
- Weight: 3.0g
- GNSS (GPS,GLONASS and BeiDou/Compass, Galileo,
- QZSS) Specifications for Data transfer
- LTE CAT-MI (eMTC)
- Uplink up to 375kbps, Downlink up to 300kbps
- NB-IoT
- Uplink up to 66kbps, Downlink up to 34kbps
- EDGE Class
- Uplink up to 236.8Kbps, Downlink up to 236.8Kbps
- GPRS
- Uplink up to 85.6Kbps, Downlink up to 85.6Kbps Consumption
Power Specifications:
- Power off: 7uA
- PSM: 9uA
- Sleep: 1mA
- Idle: 11mA
