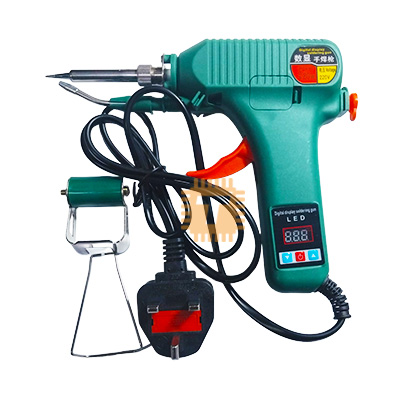

A 80W Gun-Type Soldering Iron with a Digital Display is an ergonomic, high-power soldering tool engineered for both precision electronics and heavy-duty soldering tasks. Its pistol-grip design offers superior control and reduces hand fatigue during extended working sessions. Equipped with a microcomputer temperature control system, this tool allows for rapid heating and precise adjustments, which are clearly monitored via the integrated LCD screen.

Specifications

• Power Output: 80W
• Operating Voltage: Available in 110V (US Plug) or 220V (EU/UK Plug) AC configurations
• Temperature Range: 180℃ to 480℃
• Heating Element: High-grade ceramic core
• Display Type: Backlit LCD Digital Screen
• Temperature Stability: ± 5℃
• Tip Series: Compatible with standard 900M series soldering tips

Features

• Ergonomic Pistol Grip: The gun-type chassis shifts the center of gravity closer to the user's hand, offering stable handling, excellent line-of-sight to the joint, and a built-in safety stand profile when rested on a workbench.
• Intelligent Temperature Control: Built-in microcomputer drive allows the user to adjust the working temperature in precise 1° increments using intuitive up/down buttons on the handle.
• Rapid Thermal Recovery: The internal 80W ceramic heating element heats up to operational temperatures within 15–30 seconds and recovers heat quickly when working on large, heat-sinking ground planes.
• Real-Time LCD Readout: Displays the actual tip temperature instantaneously, preventing component damage caused by guessing the heat level.
• Smart Sleep Mode (Optional in advanced models): Automatically drops the temperature to standby levels after a period of inactivity to preserve tip life and save electricity.

Common Applications

• Automotive Wiring: Repairing wiring harnesses, splicing heavy-gauge cables, and installing car audio components.
• Circuit Board Assembly: Soldering dense through-hole components onto multi-layer PCBs where thermal dissipation is high.
• RC Hobbies & Robotics: Assembling high-current XT60/XT90 battery connectors, drone ESCs, and heavy motor leads.
• Appliance Appliance Maintenance: Replacing thick switches, relays, and power transformers in household appliances.

Usage & Maintenance Tips

• First-Time Tinning: Before using the iron for the first time, allow it to heat up to roughly 250℃, then apply a fresh layer of rosin-core solder to the tip. This creates a protective "tinned" layer that prevents rapid oxidation.
• Avoid Excessive Pressure: The ceramic heating element inside the barrel is highly efficient but brittle. Do not press down hard on components using the tip like a pry bar, as this can snap the internal element.
• Tip Cleaning Discipline: Clean the tip using a brass wire ball sponge or a damp cellulose sponge. Avoid using files or abrasive sandpapers, which strip away the protective iron plating on the tip.
• Turn Off When Idle: Even with a digital display and temperature control, leaving the iron running at high heat (>400℃) while idle will rapidly burn off the tinning and oxidize the tip, rendering it incapable of holding solder. Turn the tool off or lower the heat down to minimum during breaks.
