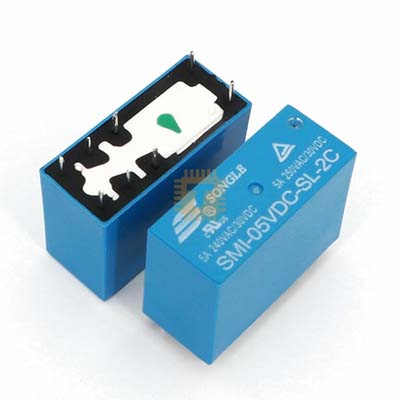

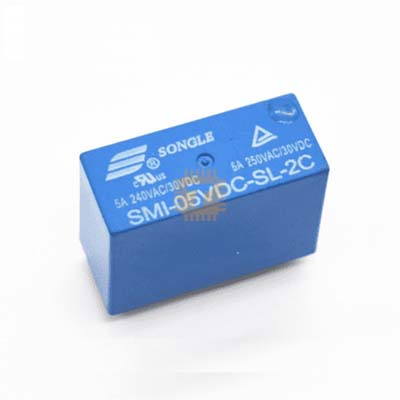

Slim Relay 5V Relay SONGLE DC-5V DC05V 5A 250VAC 8 Pin Coil DPDT Power Relay

Specifications:

• Model:SMI-5VDC-SL-2C
• Contact Form: DPDT
• Two Open And Two Closed
• Contact Rating:5A 250VAC Max
• Coil Voltage & Current: 5VDC & 45mA

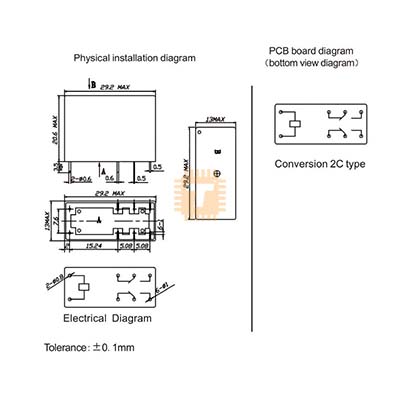

• Size:29.2x13x20.6mm
• Weight:13.5g

Features:

• Slim type and small occupying space can offer high density P.C.B. technique.
• Low coil power consumption type and general coil power consumption are prepared to comply with user’s wide selections.
• Employment of suitable plastic materials to be applied to high temperature and various chemical solutions
• Complete protective construction from dust and soldering flux, if required.

Applications:

• Cooking appliances, air conditions, audio equipment, domestic appliances and more.
