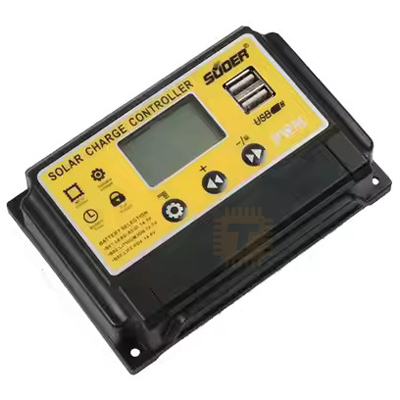

The Suoer Intellint PWM 20 A Charge Controller offers a highly functional, cost-effective solution for managing small off-grid solar setups—especially lighting-focused systems. Its combination of LCD monitoring, versatile control modes, USB outputs, remote capability, and robust protections make it attractive for DIY or low-cost commercial applications.

Features :

• PWM Charging Mode: Utilizes pulse-width modulation to regulate energy, balancing efficiency and cost
• Intelligent Control Mode: Provides more precise and optimized charging, minimizing power loss and improving energy usage
• User Interface: Equipped with an LCD display to monitor performance metrics (e.g., voltage, system state, local illumination time)
• Light + Time Control Modes: Offers combined light and timer control; includes multiple working modes such as:
  • Manual/Button mode
  • Light-controlled mode (photosensitive)
  • Light + timing mode
  • Delay-off mode
  • Circulation mode via clock
  • Optional settings for 0–24 hour on/off, and remote control
• Dual USB output: 5 V @ 1 A × 2 for charging small devices
• Infrared remote control support, with IR self-learning capability to operate DC loads wireless
• Adjustable Charge Voltage:
  • Low: 14.2 V
  • Default: 14.5 V
  • High: 15.2 V
  • This allows customisation across different battery chemistry
• Protection & Reliability:
  • Reverse polarity protection
  • Short-circuit protection (for loads)
  • Charging over-voltage protection
  • Over-current protection
  • Under-voltage (low-voltage cutoff) and recovery
  • Automatic recovery from overload conditions after ~30 seconds
• Ultra-low power consumption, and automatic memory retention for user settings
• Installation: Hanging-style design simplifies mounting and placement

Specifications :

• System Voltage: 12 V / 24 V (auto-detection)
• Rated Current: 10 A
• Max PV Power: 200 W
• Max PV Voltage (Voc): 36 V
• Charging Method: PWM, with intelligent control
• Display: LCD (shows voltage, system status, illumination time)
• Control Modes: Light, timer, manual, IR remote, time cycles
• USB Ports: Dual 5 V / 1 A outputs
• Adjustable Charge Voltage: 14.2 V / 14.5 V / 15.2 V
• Protections:Reverse, short-circuit, over-voltage, over-current, under voltage, auto-recovery
• Power Consumption: Ultra-low; retains settings automatically
• Installation Style: Hanging-style mount

Applications :

• Designed for small solar setups, particularly PV-powered lighting systems, solar working stations, lighting controllers, and solar system controllers
