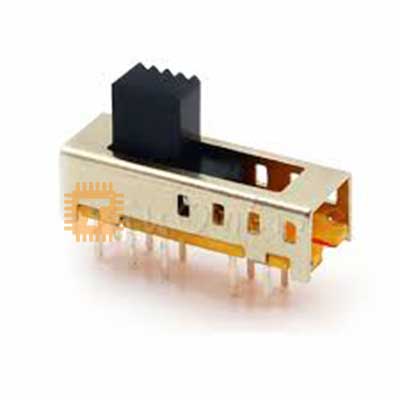

ST091Y SS24E01-G5 Slide Switch Vertical 10-pin 4-position 2P4T DP4T (BU0064) Products
| Name | ST091Y SS24E01-G5 Slide Switch Vertical 10-pin 4-position 2P4T DP4T |
| Code | BU0064 |
| Price | Rs.40.00 |
| In Stock | Yes |
| Package | THT |
Product Details
Specifications:
- Product name: Slide switch
- Rating: 30mA.4V DX
- Insulation resistance: 100MW max. 100V DC
- Dielectric strength: 250V AC for 1 min
- Contact resistance: 70mW max.
- Operating temp.range: -10ºC ~ +70ºC
- Lifetime: 10,000 cycles min.
- Actuating force: 2C-2P: 180±50gf
- Travel: 1.5±0.2mm
- Size: 18x6.2x5.2mm (LxWxH)
- Application: The slide switch can be used in headphone stereo sets, car radios, MP3, MP4 PDA notebooks, DVD and camera VCRs.
