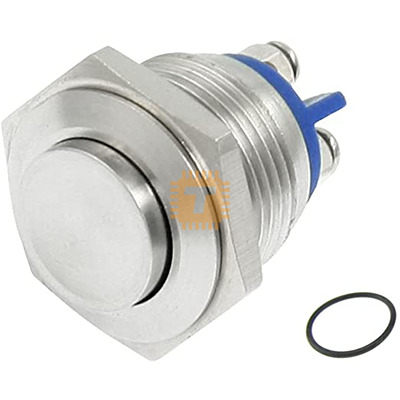

Stainless Steel Metal Push Button 16mm (Raised Top) (BU0089) Products
We are sorry but the product is out of stock, please check back after few days.
| Name | Stainless Steel Metal Push Button 16mm (Raised Top) |
| Code | BU0089 |
| Price | Rs.170.00 |
| In Stock | No |
| Package | THT |
Product Details
Specification:
- Tail configuration: Wiring terminal
- Switch Rating: 3A/250VAC
- Contact resistance: ≤50mΩ
- Insulation resistance: ≥1000mΩ
- Dielectric intensity: 2000VAC
- Operation Temperature: -20℃ ~ +55℃
- Mechanical life: 500,000 cycles
- Electrical life: 50,000 cycles
- Panel thickness: 1 - 10mm
- Nut torque: 5 - 14Nm
- Operation pressure: About 4N
- Operation stroke: About 1.5mm
- Protection level: IP67, IK08
- Mounting Cut Hole: 16mm
- Head Diameter: 19mm
- Operation Type: Momentary
- Switch Contact: 1NO (Normally Open)
- Head Shape: Raised
- Terminal Type: Screw
- Body Material: Stainless Steel (SS is much more resistant to wear and abrasion)
- Button Material: Stainless Steel
- Base: PA66
- Color: Silver / Chrome
