Features

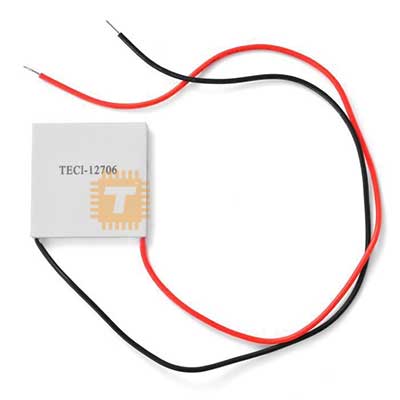

• Item type: Thermoelectric Cooler
• Operating current: Imax=6 (4.5A at rated voltage start)
• Product size: 40x40mm
• Internal resistance: 2.0~2.2Ω (ambient temperature 23±1°C, 1kHZ Ac test)
• Wire specification: Lead length 300±5mm RV standard wire Single head 5mm tin plating
• Cooling power: Qcmax 60W
• Rated power: 60W
• Rated current: 5A
• Assembly pressure: 85N/cm2
• Rated voltage: DC12V (Vmax)
• Storage conditions: -40~60°C
• Maximum temperature difference: △Tmax (Qc=0) Above 62°C
