The dual-power automatic transfer switch (ATS) is a newly developed miniature household power transfer switch, is mainly used to test whether the main power or reserve power is normal.

When the normal power supply is abnormal, the reserve power supply will start work immediately to ensure continuity, reliability and safety of the power supply. It is specially designed for household rail installation for PZ30 distribution box.

The ATS is suitable for emergency power supply systems of AC50 or 60Hz and rated voltage 400V. It is featured with firm structure, reliable transfer, easy installation and maintenance, and long life, is widely used in places where frequent power outage is not allowed. Both electric and operation and manual operation are available. The ATS is composed of TES and controller

According to the standard GB/T14048.11 Part 6-1: Multiple function equipment - Transfer switching equipment, we can know that ATS is the most suitable low-voltage switchgear and control device.

SPECIFICATIONS

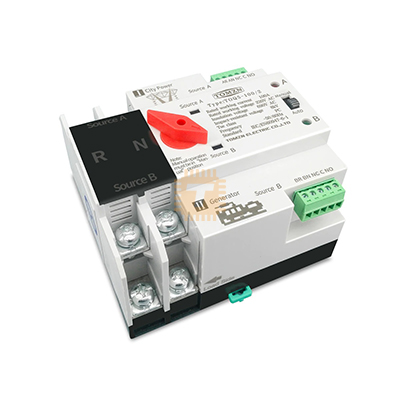

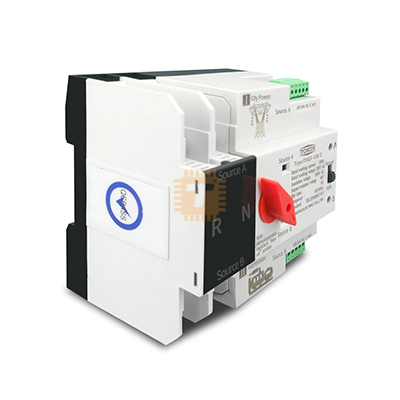

• Item Name: Dual power automatic transfer switch
• Model Number: TOQ5-100/2P
• Rated Current: 63A, 100A
• Rated Voltage: L+N 220-230VAC 50-60Hz
• Rated insulation Voltage: 690V
• Number of Poles: 2 Poles

FEARTURES

• Automatic switching after power off: Less than 8ms
• Two automatic adjustment methods

-The Switch comes with manual and automatic mode, with air switch style. The chain structure is more durable.

• 35mm Standard rail installation

-Can be directly install on the household lighting distribution box

• Industrial silver contacts

-The contact use industrial silver contacts, greatly improving the service life and conductive performance of the product are improved.

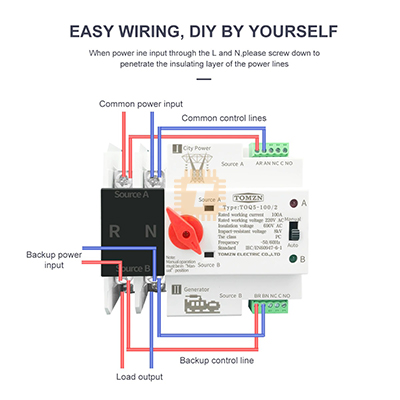

• Easy wiring and DIY (Do It Yourself)

-When power line input through the L and N, please screw down to penetrate the insulting layer of the power lines.
