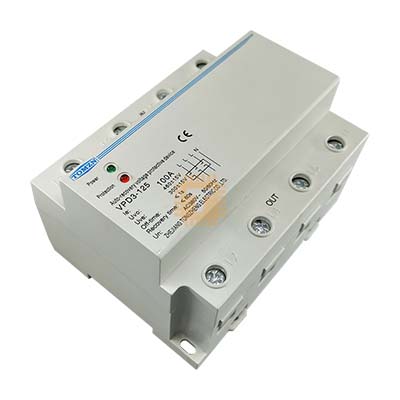

The automatic recovery over- and under-voltage protective device complies with modular design standards. The circuit boards of products adopt good-quality electronic components with reliable performance. when the power situation is unstable. It's protection function will be automatically activated. Once the voltage exceeds the limited range of products, it will automatically cut off so as to protect the safety of electrical equipment and people. The device will resupply after 1 minute, when the power returns to normal.

Main Technical Specification:

• Rated AC voltage: 380V±10% and frequency: 50Hz/60Hz
• Passing Max Current: 100A
• Max. Loading power: 38KVA
• Over-voltage action cut-off value: >460 VAC +/- 15 V
• Normal-voltage value: 300-460 VAC
• Under-voltage action cut-off value: <300>
• Over voltage and under voltage cut-off:< 1s>
• Electricity transmitting delay after cut-off: <60s>
• Self-power consumption<2W>
• Electric machinery life = 100,000 times
• Installing: 35mm Din rail
• The green indicator displays when the power is in normal supply.
• The red indicator displays when the power is over or under voltage.
