The TWO TREES TTC3018 Pro is a versatile CNC engraving and machining system designed for precision work on a variety of materials including PCB, wood, plastic, acrylic, and soft metals. Whether you’re cutting, engraving, milling, or drilling, this all-in-one desktop CNC machine is ideal for hobbyists, makers, educators, and small-scale fabrication with excellent build quality and performance.

Key Features:

• Multi-Function CNC: Engraving, routing, milling, and drilling capabilities
• Wide Material Compatibility: Works on PCB, wood, plastics, acrylic, and soft metals like aluminum
• Robust Mechanical Structure: Solid frame for high precision and reduced vibration
• Precision Motion Control: Smooth movement for detailed and accurate cuts
• User-Friendly: Compatible with common CNC software for easy setup and operation
• Expandable & Upgradable: Supports add-ons like laser modules and offline controllers

Specifications:

• Model: TTC3018 Pro
• Type: 3-Axis Desktop CNC Router / Engraver / Milling Machine
• Working Area (Travel):
  • X-Axis: 300 mm
  • Y-Axis: 180 mm
  • Z-Axis: 40 mm
• Spindle / Cutting:
  • Spindle Motor: 775-type brushed DC motor (12–24 V, ~5 A)
  • Spindle Speed: ~7,000–9,000 RPM
  • Collet Type: ER11 (supports 0.5 – 7 mm shank cutters)
• Performance & Motion:
  • Maximum Cutting / Engraving Speed: ~1,500 mm/min
  • Positioning / Engraving Accuracy: ~±0.1 mm

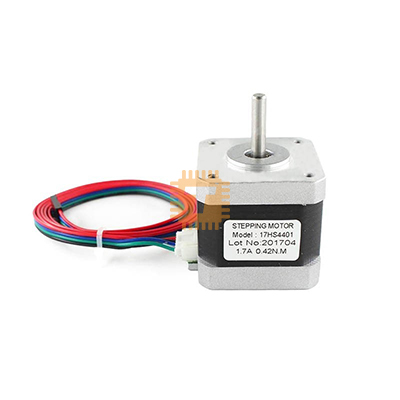

  • Guide/Drive: GT2 belt on X/Y; T8 lead screw on Z with NEMA17 stepper motors
• Control & Electronics:
  • Control Board: ESP32 (32-bit high-speed) / MKS DLC32 V2.0 with A4988 drivers (varies by region)
  • Firmware: GRBL compatible
  • Interface & Connectivity:
  • USB port
  • TF / microSD card
  • Wi-Fi (model dependent)
  • Supported Software: Candle, Easel, Fusion 360, ArtCAM, Carveco Maker (via G-code)
• Power Supply:
  • Input: AC 100 – 240 V
  • Output: DC 12 – 24 V, ~5 A (~33 W total)
• Materials Supported:
  • Wood
  • Acrylic
  • Plastic / PVC
  • PCB
  • Soft metals (e.g., aluminum, brass; light cutting)
• Other Technical Details:
  • Collet Compatibility: Standard ER11 collets
  • Drill Bit Compatibility (typical): ~3.175 mm diameter, ~0.1 mm tip
  • Supported File Formats: .nc, .gcode

Applications:

• Precision engraving on wood, acrylic, and plastics
• Milling and drilling PCBs for prototyping
• Creative projects and sign making
• Model building and fabrication
• Soft metal cutting and machining for DIY projects
