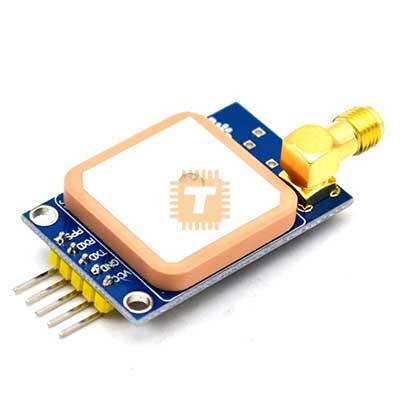

The Ublox NEO-6M is a high-performance GPS positioning module specifically optimized for aerial and mobile applications. This enhanced version features a MicroUSB port for direct PC debugging and an SMA connector for high-gain external antennas. It is the go-to choice for hobbyist drones, RC planes, and DIY flight controllers due to its reliable signal acquisition and low power consumption.

Specifications

• Receiver Type: 50-channel u-blox 6 engine
• Position Accuracy: 2.5m (Horizontal)
• Velocity Accuracy: 0.1m/s
• Time-to-First-Fix (TTFF):
  • Cold Start: 27s
  • Hot Start: 1s
• Sensitivity: -161 dBm (Tracking)
• Operating Voltage: 3.3V to 5.0V DC (Power via VCC pin or MicroUSB)
• Interface: UART (TTL) and MicroUSB
• Logic Level: 3.3V TTL (TX/RX pins are not 5V tolerant)
• Default Baud Rate: 9600 bps

Pin and Interface Definition

1. VCC: Power Supply (3.3V to 5.0V).
2. GND: Ground wire.
3. TXD: Module serial data transmit (Logic Level: 3.3V TTL).
4. RXD: Module serial data receive (Logic Level: 3.3V TTL).
5. PPS: Clock pulse output (One pulse per second).
   • The PPS signal indicates the exact start of a UTC second with its rising edge. This provides nanosecond-level timing accuracy with zero accumulated error, compensating for any serial data transmission delays.
6. MicroUSB Port: Allows for direct debugging and configuration via a standard mobile phone data cable without needing a separate USB-to-TTL converter.

Features

• Dual Power/Data Path: Can be controlled via the dedicated TTL header for MCU integration or via the MicroUSB port for easy computer-based calibration using u-blox u-center software.
• Dual Antenna Support: Features an onboard ceramic patch antenna for open-air use and an integrated SMA interface for connecting external high-gain antennas to improve satellite counts in challenging areas.
• Data Backup: Includes an onboard rechargeable battery and EEPROM to store the last known satellite positions (Ephemeris data) for near-instant "Hot Starts."
• Signal Indicator: An onboard LED blinks once a valid satellite fix is achieved, providing immediate visual feedback.

Common Applications

• Autonomous Flight: Enabling "Return to Home" (RTH) and Waypoint Navigation for multirotors and fixed-wing aircraft.
• High-Precision Timing: Utilizing the PPS pin for synchronizing network clocks or telecommunications equipment.
• Vehicle Tracking: Using the SMA port for a roof-mounted antenna in fleet management or anti-theft systems.
• Telemetry: Streaming NMEA data to Ground Control Stations (GCS) for real-time mission monitoring.

Usage Tips

• Logic Level Protection: Since the RX/TX pins are not 5V tolerant, use a logic level shifter or a simple voltage divider when connecting to 5V microcontrollers (like an Arduino Uno) to prevent damaging the module.
• Antenna Orientation: If using the onboard ceramic antenna, it must face directly upward toward the sky. Keep it away from metal, carbon fiber, or high-power transmitters (VTX).
• Indoor Limitations: GPS signals cannot penetrate reinforced concrete. For testing indoors, use an external antenna placed near a window or use the MicroUSB port to monitor initial signal acquisition.
