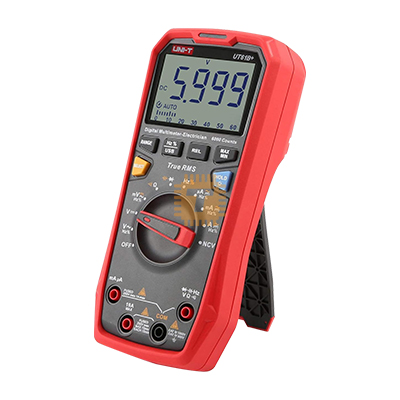

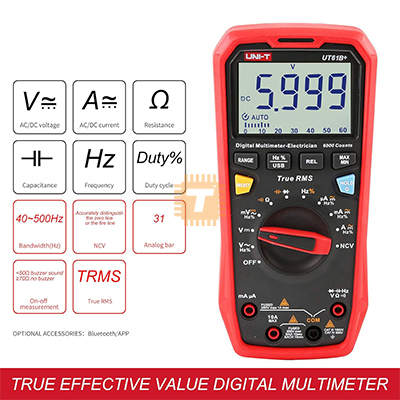

UT61+ series are reliable true RMS digital multimeters with display counts of 6000. It can measure up to 1000V AC/DC voltage and is designed with a safety rating of CAT III 1000V/CAT IV 600V. This series also features audio and visual alarms,high voltage and current warnings, and temperature warnings. Its built-in log bar and USB communication functions can help you quickly and easily visualize measurement results.

Specification:

• Safety Ratings: CAT III 1000V/CAT IV 600V
• AC voltage (V): 1000V±(1%)
• DC voltage (V): 1000V±(0.5%)
• AC current (A): 10A±(1.2%)
• DC current (A): 10A±(1%)
• Resistance (Ω): 60MΩ±(1%＋2)
• Capacitance (F): 60 mF±(3%)
• Frequency (Hz): 10 MHz±(0.1%)
• Duty cycle (%): 0.1%~99.9%

NCV Detection

• NCV multi-segment display: It can test the strength of the signal. There are 4 levels of strength display, which can distinguish the "zero wire" and "fire wire" and determine whether the wire is charged.

NCV Detection:

• NCV multi-segment display: It can test the strength of the signal. There are 4 levels of strength display, which can distinguish the "zero wire" and "fire wire" and determine whether the wire is charged.
• USB Data Transmission
• The real-time data transmission function can be carried out in the measurement process.

1. Pull out the USB sealing cover of the body.

2. Insert the USB communication module into the USB communication terminal of the fuselage; at this time, the LCD screen data transmission prompt symbol will be displayed.

3. If the USB data transmission function is not needed during the measurement process, you can press and hold the USB button to turn off the data transmission function.
