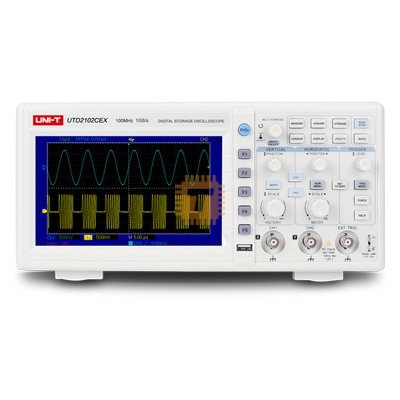

The UTD2000CEX Series stands as the value leader in high-performance, economical oscilloscopes, boasting a 1 GSa/s sampling rate and a spacious screen. Widely adored by customers, the series has expanded into three sub-series—CEX, CEX+, and CEX-II—catering to diverse customer needs. The classical CEX Series serves as an excellent entry point for value oscilloscope requirements, offering features such as FFTs, record and replay, roll mode, and alternate trigger mode. The CEX+ enhances the experience with a broader trigger mode, 34 types of automatic parameter measurement, common mathematical operation functions, and optimized panel operation, significantly improving work efficiency to handle complex signal measurements effortlessly. The CEX-II boasts a waveform capture rate of up to 20,000 wfm/s, complemented by an upgrade to an 8-inch screen, facilitating detailed observation of waveforms.

Features:

The UTD2000CEX series is equipped with 2 channels as standard and has multiple national languages, which is convenient for operation and use in more regions and countries.

Specifications:

• Channels: 2
• Bandwidth: 100MHz
• Sampling rate: 1 g/s
• Memory depth: 25kpts
• Waveform capture rate: 2000wfms/s
• Time base scale (s/div): 2ns/div-50s/div
• Vertical scale (V/div): 1mV/div-20V/div
• DC gain accuracy: <5mV>5mV/div: 3%
• Waveform record: 1000 frames
• Supported languages: English, Dutch, Spanish, Korean, French, German, Portuguese, and Russian
• Trigger types: 3
• Auto measurements: 28
• Interfaces: USB OTG
• Display (resolution): 7" TFT color (800 x 240)
