A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.

Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach., reef aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation line, in relays, or what ever your project may be. This is a mini float switch. Contains no mercury.

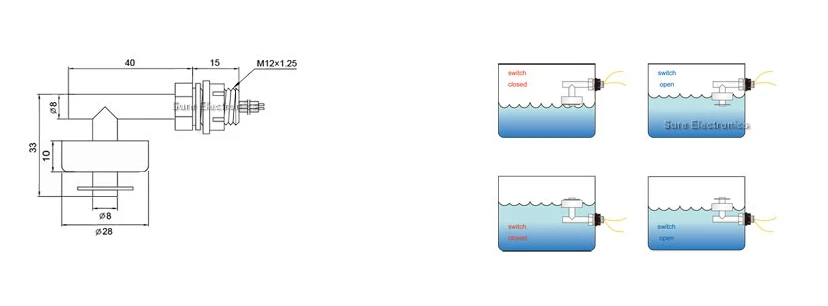

This right angle float switch can be arranged in any height.

Specifications:

• Cable Length: 37.5cm
• Max Breakdown Voltage: 220V DC
• Max Switching Voltage: 100V DC
• Maximum Switching Current: 0.5 A
• Max Load Current: 1.0 A
• Max Contact Resistance: 100 mΩ
• Temp Rating: -10~+85°C
• Installation: top or bottom mounted vertically
• Use medium: water, oil, chemical medium
• Pressure range: 0.2MPa
