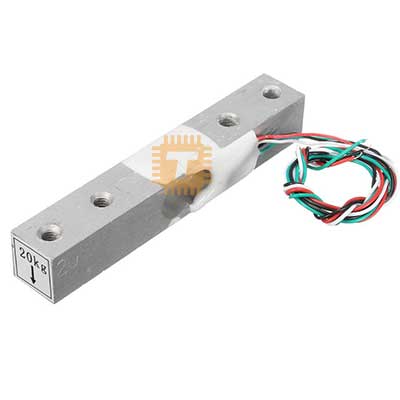

Specifications

• Rated load: 20 Kg
• Output: 2mv / v
• Temperature zero drift: 0.1% F.S
• Output sensitivity: ± 0.15mv / v
• Temperature sensitivity: 0.05% F.S
• Insulation resistance: ≥ 2000MΩ
• Excitation voltage: 5-10VDC

Wire Connection

The load cell acts like a bridge, it has 4 colored wires as follows

• VCC: Red wire
• GND: Black wire
• Signal +: Green wire
• Signal -: White wire

-You need to connect load cell wtih HX711 module like this, Red to E+, Black to E-, Green to A+, White to A-
