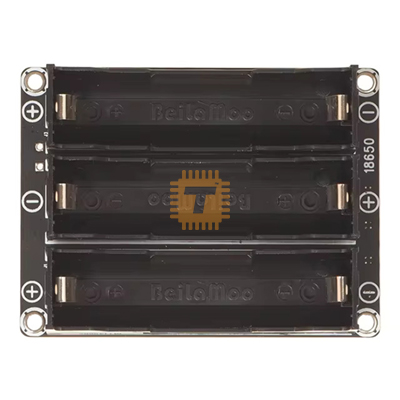

MD0893 - WONDOM 3S 18650 5-24V Input Lithium Battery Charging Balance and Protection Extension Board

WONDOM 3S 18650 5-24V Input Lithium Battery Charging Balance and Protection Extension Board (MD0893) Products

Name	WONDOM 3S 18650 5-24V Input Lithium Battery Charging Balance and Protection Extension Board
Code	MD0893
Price	Rs.7,010.00
In Stock	Yes
Package	MODULE

Product Details

BCPB2 is a highly reliable Lithium-Ion Battery Charging, Protection, and Balancing Board that operates with wide input range, 5- 24V. This board is able to charge the batteries from input voltages above, below, or equal to the output voltages. It is designed for 3 in series 18650 Lithium-Ion Battery which provides approximately 30-40Wh energy. The MPPT charging integrated feature supports a 15-24V power supply. BCPB2 is complemented with a visualized display of battery level indicators. To ensure the reliability of this board, it is equipped with full protection circuit; overcurrent, over-temperature, short circuit, and over/under voltage protection. The battery balancing IC allows constant battery voltage between 3 in series 18650 Lithium-Ion cells. This battery board is designed for industrial application with verified MTBF for low-temperature increment under rigorous design, suitable for portable Bluetooth speaker, DIY audio and industrial applications.

Wide Input Range as DC5-24V, Supporting MPPT Solar Charging
BCPB2 supports extremely wide supply voltage range as DC5V-24V, which means most power supply can be used to charge the batteries through BCPB2. In addition, BCPB2 is integrated MPPT charging circuit, therefore, it supports solar charging. The supported voltage range is 15-24V.

Multiple Discharging Ports for Multiple Devices
BCPB2 provides multiple discharging ports with different terminal interfaces for customers’ convenient system integration. All the discharging ports are connected in parallel, so the functions are the same. You can use BCPB2 to power several devices at the same time.

Indicators for Board Running Situation
For customers’ better and more instinct understanding of the running situation of BCPB2, we provide ports for external power, charging and remaining battery level LEDs. These indicators can help you know the status of the battery board even if it's integrated into a cabinet.

Full Protection for High Reliability
BCPB is equipped with full protection circuit, such as overcurrent, over-temperature, short circuit, and over/under voltage protection, to ensure the high reliability and stability in any applications.

Optional Accessory Cables

We have provided an optional cables kit for customers’ convenient use and connection of BCPB2, which includes discharging cables with different terminal interfaces and external LED indicator cables. You can find the cables kit (PS-BC12312) on our website.
