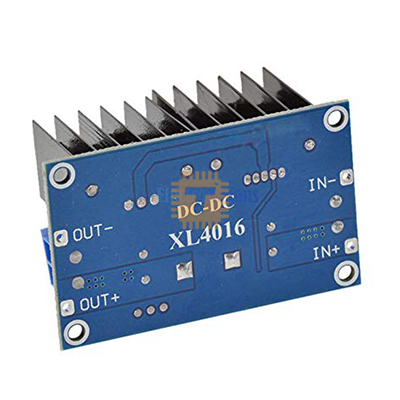

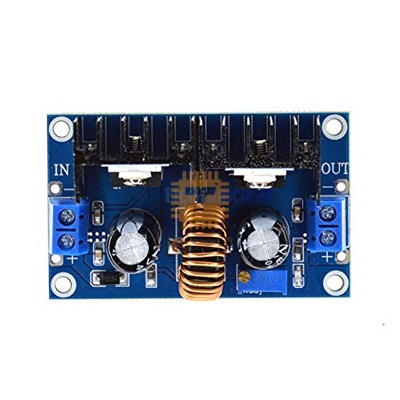

XL4016 PWM Adjustable 4-36V to 1.25-36V 8A 200W DC-DC Step-Down Buck Module (MD0676) Products
| Name | XL4016 PWM Adjustable 4-36V to 1.25-36V 8A 200W DC-DC Step-Down Buck Module |
| Code | MD0676 |
| Price | Rs.580.00 |
| In Stock | Yes |
| Package | MODULE |
Product Details
This voltage regulator has excellent linearity regulation and load regulation with multiple protection namely over-current protection, over-temperature protection and short circuit protection. This is used for wide range of applications such as car audio, radio, navigator, monitor, LED car display, air conditioner, interphone and motors.
Specification
- Product name: DC-DC Step-Down Buck Voltage Regulator
- Voltage Regulating Mode: PWM modulation
- Input Voltage: 4 - 38VDC
- Output Voltage: 1.25 - 36VDC
- Maximum Current: 8A (please add fan and make current less than 5A for a long term use)
- Maximum Power: 200W
- Conversion Efficiency: 95%
- Switching Frequency: 180KHz
- Working Temperature: -45 ~ +85℃
- Size: Approx. 61 x 40 x 29mm
