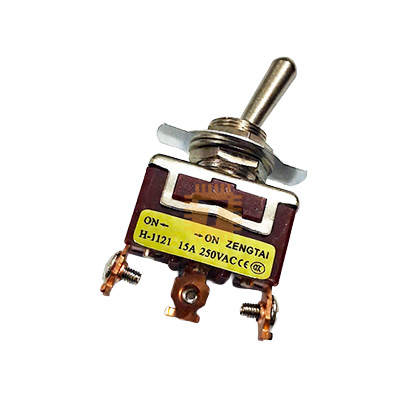

The Original ZENGTAI H-1121 3-Pin Heavy-Duty ON-ON Toggle Switch (15A 250VAC / 20A 125VAC) is an industrial-grade single-pole double-throw (SPDT) panel-mount mechanical switch engineered for reliable AC mains changeover, dual-load selection, and high-current DC circuit switching. Built with a solid nickel-plated metal bat lever, a high-dielectric phenolic/bakelite insulating body, and heavy-duty silver alloy contacts, it provides positive mechanical detent action with low contact resistance. Equipped with three heavy-duty brass screw clamp terminals and standard 12mm threaded mounting hardware with an anti-rotation locating ring, the ZENGTAI H-1121 is widely utilized in industrial machinery, power inverters, generator transfer panels, workshop equipment, dual-speed motor controllers, automotive dashboards, and heavy-duty DIY electrical control boxes.

Specifications

• Brand / Manufacturer: ZENGTAI (Original Heavy-Duty Switch Series)
• Model / Part Number: H-1121 (H1121)
• Switch Type: Heavy-Duty Industrial Bat Lever Toggle Switch
• Circuit / Pole Configuration: SPDT (Single Pole, Double Throw - 3 Pins / 1 Form C)
• Switching Function / Operation: 2-Position Maintained / Latching Changeover (ON - ON)
• Electrical Contact Ratings:
  • AC Rating: 15A @ 250V AC / 20A @ 125V AC
  • DC Rating: 15A @ 12V–30V DC (General inductive/resistive switching)
• Contact Material: Silver Alloy Contacts (High electrical conductivity and arc resistance)
• Contact Resistance: ≤ 50 mΩ (Initial at 1A DC)
• Insulation Resistance: ≥ 100 MΩ (at 500V DC)
• Dielectric / Breakdown Voltage: 1500V AC (50/60 Hz for 1 minute between non-connected parts)
• Mechanical Life Expectancy: ≥ 50,000 Cycles
• Electrical Life Expectancy: ≥ 10,000 Operations (at full rated load)
• Actuator Style: Heavy-Duty Nickel-Plated Solid Metal Bat Lever
• Body / Housing Material: High-Dielectric Heat-Resistant Phenolic / Bakelite Casing
• Termination / Connection Type: 3x Heavy-Duty M3.5 Brass Screw Clamp Terminals (Accepts spade lugs, ring terminals, or bare wire)
• Mounting Method: Panel Mount via Threaded Bushing
• Mounting Hole / Cutout Diameter: 12.0 mm to 12.2 mm (Standard 1/2-inch panel hole)
• Bushing Thread: M12 × 0.75 mm
• Operating Ambient Temperature: -25°C to +85°C
• Included Hardware: 2x Hex Nuts, 1x Internal Tooth Lock Washer, 1x ON-ON Legend Faceplate Nameplate
• Dimensions: Approx. 29 mm × 19 mm × 17 mm (Body only, excluding lever and terminals; Total height approx. 54 mm)
• Weight: Approx. 30 g

Features

• High 15A / 250VAC Heavy-Current Capacity: Engineered to switch high-power AC loads, auxiliary heaters, and motor circuits without contact pitting or welding.
• SPDT 2-Position Changeover (ON-ON): Allows continuous routing between two separate circuits, power sources, or operating modes (e.g., Line A vs. Line B, High vs. Low, Auto vs. Manual).
• Solid All-Metal Bat Lever: Delivers crisp tactile feedback and distinct mechanical detent snap, ensuring reliable operation even with gloved hands in industrial environments.
• Heavy-Duty Screw Terminals: High-torque brass screw terminals with captive washers accommodate direct wire clamping or secure fastening with M3.5 ring/fork crimp lugs without soldering.
• Durable Phenolic Housing: High-temperature, flame-retardant insulating base offers superior dielectric strength and high vibration resistance under continuous duty.
• Complete Panel Mounting Kit: Includes dual locking hex nuts, lock washer, and an aluminum "ON-ON" indicator nameplate with an anti-rotation locating tab.

Common Applications

• Dual-Source Power Transfer: Manual changeover switching between Mains grid power and Inverter/Generator backup lines.
• Industrial Machinery & Workshop Equipment: Mode selectors (Auto / Manual), direction controls, and two-speed motor winding switching.
• Audio Amplifiers & Stage Gear: Dual-channel selectors, speaker impedance switching, and standby/run mode switching in tube amplifiers.
• Automotive, Marine & 4x4 Rigs: Dual battery bank selectors (Battery 1 / Battery 2), high-beam/low-beam changeover, and auxiliary circuit routing.
• Laboratory & DIY Test Benches: Voltage selector switching, load bank toggling, and multi-rail routing on custom power supplies.

Usage Tips

• Terminal Connections (SPDT Pinout): The center screw terminal is the **Common (COM)** contact. Toggling the lever connects the center terminal to either the top outer terminal (Position 1) or the bottom outer terminal (Position 2).
• Secure Terminal Fastening: For high-vibration automotive or industrial machinery environments, crimp stranded wires with **M3.5 fork (spade) or ring terminals** before tightening down the brass screw clamps to ensure low contact resistance and prevent loose wire fraying.
• Panel Anti-Rotation Tab: Align the included ON-ON legend nameplate keying tab with your panel notch to prevent the switch body from rotating during actuation.
• Inductive Load De-rating: When switching heavy inductive loads (transformers, AC induction motors, large solenoids), de-rate the continuous operating current to **50%–60% of rated capacity (approx. 8A–10A)** to handle turn-off voltage transients and inrush currents.
• Optional Weatherproof Boot: For outdoor, marine, or dusty workshop installations, an optional M12 threaded silicone/rubber toggle boot seal can be screwed over the metal lever to achieve an IP65 splash-proof seal.
