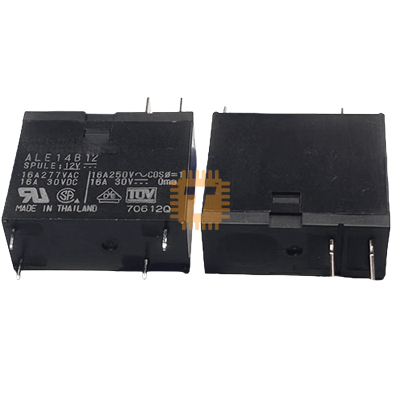

The ALE14B12 Relay is a high-performance 12V DC coil electromechanical relay designed for reliable switching of high-current loads. With a contact rating of up to 16A at 250VAC, it is ideal for power control applications in industrial, home automation, and electronic circuits.

This relay features a compact PCB mount design, making it suitable for integration into control boards, power supplies, and automation systems.

Features

• 12V DC coil voltage for easy microcontroller interfacing (via driver circuit)
• High contact rating: 16A at 250VAC
• SPST (1 Form A) or SPDT configuration (depends on variant)
• Compact PCB mount design
• High reliability and long electrical life
• Strong insulation and dielectric strength
• Low power consumption coil

Specifications

• Model: ALE14B12
• Coil Voltage: 12V DC
• Contact Rating: 16A @ 250VAC / 30VDC
• Contact Type: Typically SPST-NO (1 Form A)
• Mounting Type: Through Hole PCB + Spade connector
• Insulation Resistance: High (typically ≥100MΩ)
• Operate Time: ~10 ms
• Release Time: ~5 ms
• Coil Power Consumption: Approx. 0.36W (typical)

Applications

• Home automation systems
• Industrial control panels
• Power switching circuits
• Smart appliances
• Motor and pump control
• Lighting control systems
• Arduino / ESP32 relay modules
