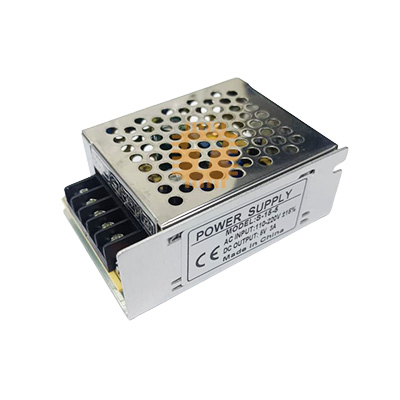

A 5V 3A SMPS (Switched-Mode Power Supply) housed in a ventilated aluminum metal casing is a regulated power adapter engineered to convert high-voltage AC mains electricity (110V or 220V) into stable, low-voltage 5V DC power. Capable of delivering up to 3A (15W) of continuous current, this industrial-grade power supply is widely used to run digital electronics, development microcontroller boards, LED strips, and smart automation modules.

Specifications

• Input Voltage Range: 110V / 220V AC (± 15%) manual selection switch or universal input
• Input AC Frequency: 50Hz / 60Hz
• Output Voltage: Fixed 5V DC
• Output Current: Maximum 3A (3000mA) continuous
• Total Output Power: 15W maximum
• Voltage Adjustable Range: ± 10% (Typically 4.5V - 5.5V via an onboard potentiometer)
• Casing Material: Mesh-ventilated Aluminum Alloy
• Safety Protections: Automatic short-circuit recovery, overload protection (105\% - 150%), and over-voltage clamping

Features

• High-Efficiency Conversion: Switched-mode power electronics operate with significantly less thermal waste compared to older linear power transformers, boasting typical efficiencies above 80%.
• Ventilated Metal Chassis: The perforated aluminum mesh enclosure acts as a passive heatsink, safely dissipating heat without needing a noisy cooling fan. The chassis also provides a degree of EMI (Electromagnetic Interference) shielding.
• Onboard Voltage Trim Potentiometer: Features a small adjustable screw terminal (often labeled +V ADJ). This allows users to fine-tune the output voltage slightly above 5V to compensate for voltage drops when pushing current through long power wire runs.
• Heavy-Duty Terminal Block: Connections are handled via robust screw down terminals hidden beneath a safety flap, ensuring a more secure mechanical connection than standard barrel jacks or micro-USB plugs.

Terminal Block Pinout Guide

When wiring the power supply, match your home mains lines and low-voltage project cables to the stamped symbols below the screw strip:

• L (Live): Connect to the Brown or Red wire of your AC mains supply cable.
• N (Neutral): Connect to the Blue or Black wire of your AC mains supply cable.
• Grounding (Earth Ground): Connect to your home electrical safety ground line (Green or Green/Yellow wire) to shield the chassis from static hazards.
• -V / COM (Common): The negative (0V) DC output terminal rail for your project.
• +V: The positive (+5V) DC power rail for your project.

Common Applications

• LED Strip Arrays: Driving individual addressable WS2812B, SK6812, or Neopixel LED strands that rely on an explicit 5V bus line.
• Microcontroller Projects: Powering complex setups involving multiple Arduino boards, ESP32 modules, sensors, and relays that overload standard USB ports.
• Single-Board Computers: Providing high-amperage power to Raspberry Pi hubs, avoiding the frequent under-voltage "lightning bolt" warning indicators.
• Security & Access Control: Supplying uninterrupted background power to 5V IP cameras, electronic door strikes, and biometrics scanners.

Usage & Safety Guidelines

• Check the Input Voltage Switch: Before plugging the unit into a wall outlet, check the side of the metal casing for a manual voltage slider switch (110V / 220V). Ensure it matches your local utility grid voltage (110V in the US, 230V in the UK/EU/Asia). Turning on a unit set to 110V while plugged into a 220V grid will immediately destroy the internal capacitors.
• The 80% Power Rule: For maximum longevity, do not run any SMPS at its absolute peak threshold (3A) continuously for hours. It is best practice to size your project load to operate within 80% of the maximum rating (Approx 2.4A for this unit).
• Insulate Exposed Mains Pins: Because industrial SMPS units use open screw terminals, the incoming 220V AC lines are exposed to open air. Always mount the unit safely inside a project enclosure out of arm's reach, or print/install a 3D-printed plastic terminal cover to prevent accidental shock hazards.
• Indoor Use Only: This casing style features an open mesh design which is not waterproof or dustproof (IP20 rated). Keep it away from humid environments, moisture, or areas with loose metal shavings that could fall inside and bridge the internal PCB lines.
