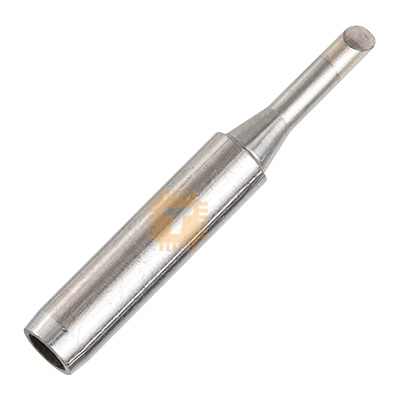

The 900M-T-3C is a specialized, bevel-style (also known as a "C-series" or cut-slope) soldering iron tip featuring a 3mm diameter face cut at a 45℃ angle. This premium shape behaves like a small heat reservoir and solder distribution chalice. It is highly favored by electronics technicians for surface-mount technology (SMT) drag soldering, multi-pin integrated circuit (IC) installations, and heavy-duty wire splicing where rapid, uniform thermal transfer is critical.

Specification

• Model Series: 900M Standard
• Tip Profile: 3C Bevel / Sloped / Cut-Cylinder
• Diameter Face (D): 3.0mm
• Bevel Angle: 45℃
• Core Material: High-Conductivity Pure Oxygen-Free Copper (OFC)
• External Protective Layering: Multi-layer electroplating (Iron matrix plating, Chromium anti-corrosion layer, and pre-tinned nickel tip)
• Heating Element Fit: Internal-heat hollow sleeve (Designed for ceramic heating elements measuring approx 4mm outer diameter)

Features

• High Thermal Mass Face: The flattened 3mm circular oval profile concentrates a larger volume of copper right at the working edge compared to sharp conical tips. This prevents the tip temperature from dropping sharply when making contact with large grounding planes or heavy copper PCB traces.
• Solder Concavity Retention: The sloped tip naturally holds a precise bead of molten solder through surface tension. This makes it an exceptional choice for "drag soldering" surface-mount microchips, allowing a user to glide across 20+ pins in a single smooth stroke without causing accidental solder bridges.
• Heavy Iron-Plated Coating Matrix: Encased in a thick, uniform iron layer that resists the corrosive, eating effects of aggressive rosin and acid fluxes, vastly extending the operational lifespan of the face.
• Chromium Non-Wetting Skirt: The rear body of the tip is coated in a matte chromium layer. Solder cannot stick to this section, forcing the liquid alloy to stay concentrated exclusively on the working tip face where it belongs.

Common Applications

• SMD / SMT Integrated Circuit Drag Soldering: Rapidly soldering high pin-count components like QFP, SOIC, and PLCC microchips onto circuit boards.
• Thick Gauge Wire Splicing: Tinning and fusing heavy-duty multi-strand electrical wires (14 AWG - 18 AWG) used in RC Lipo batteries and power supplies.
• Through-Hole Connectors and Pin Headers: Rapidly heating heavy structural joints like DC barrels, multi-pin terminal blocks, and standard pin header arrays.
• Desoldering/Wick Cleanups: Pressing copper desoldering braid perfectly flat against old circuit pads to clear away residual solder matrix.

Professional Usage & Maintenance Tips

• Never File or Sand the Tip Surface: If your tip oxidizes or turns black, do not use sandpaper, wire brushes, or files to scrape it. Puncturing the protective micro-thin iron plating will expose the soft inner copper core directly to oxygen and flux acids, causing the core to hollow out and melt away within days. Use a brass wire cleaning ball or a dedicated chemical tip tinner block instead.
• Apply the "Always Tinned" Storage Habit: Oxygen is the ultimate enemy of hot soldering metal. Whenever you finish a joint, and right before turning off your soldering station, coat the 3mm face with a fresh blob of solder. This sacrificial layer oxidizes while sitting on the rack, keeping the underlying chrome-iron matrix perfectly pristine for your next project.
• Match Temperature to the Alloy: Keep your work station dial set between 330℃ and 370℃. Cranking the iron up past 400℃ to work faster will dramatically accelerate oxidation rates and burn off active fluxes before they can scrub away surface oxides.
• Avoid Dry Sponges: If you clean your tip with a traditional cellulose yellow sponge, ensure it is thoroughly damp, not dry or bone-white. Shocks from pressing a 350℃ tip against a bone-dry or overly frozen wet sponge can cause micro-cracking in the plated metal layers due to thermal shock. Safest results are achieved using a brass wire mesh cleaning nest.
