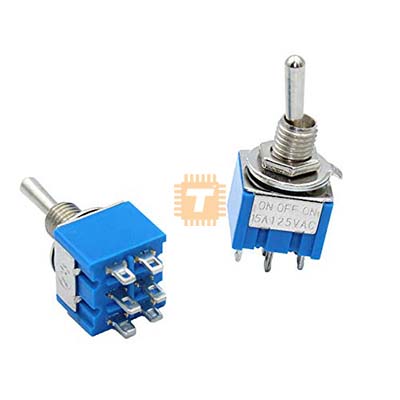

This switch can be on in both positions. An DPDT toggle switch may be used as a simple on-off-on switch by connecting to COM. The switch is a double-pole, double-throw with six pins.

Features:

• Rated Voltage: 125VAC
• Rated Current: 6A
• Contact Resistance: 20MΩ (Max)
• Insulation Resistance: 1000MΩ
• Operating Temperature Range: -25 to 85°C
• Life Cycle: 10000 Switch Type: DPDT
• Number of Terminals: 6
• Mounting: Panel Mount with Threads Easy to install
• Durable in use
• It can be used on low voltage or high voltage circuits Ideal for switching lights or motors
• Size: 13x13x29mm (LxWxH) (Approx.)
• Weight: 5gm (Approx.)

Applications:

• Home appliances, Robot, Toys etc.
