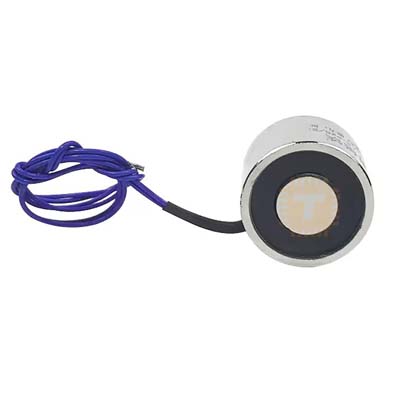

The P25/20 5V Electromagnet is a compact, efficient holding-type solenoid capable of lifting up to 8 kilograms of ferromagnetic material. It operates on low voltage (5VDC), making it ideal for hobby projects, robotics, automation systems, smart locks, vending machines, and industrial holding applications.

Key Features:

• Strong Magnetic Holding Force – Capable of lifting up to 8kg when powered
• Low Voltage Operation – Works safely on 5VDC, perfect for microcontroller integration (Arduino, Raspberry Pi, etc.)
• Durable Metal Body – CNC-machined with rust-resistant coating
• Easy to Use – Simply apply DC voltage to activate the magnetic field
• Compact Design – Fits easily into enclosures and tight spaces
• Instant Hold and Release – Energize to attract, de-energize to release immediately

Specifications:

• Model: P25/20
• Type: Holding Electromagnet
• Rated Voltage: 5VDC
• Power Consumption: Approx. 3W (0.6A @ 5V)
• Holding Force: Up to 8kg (on clean, flat iron surface)
• Material: Steel with anti-rust finish

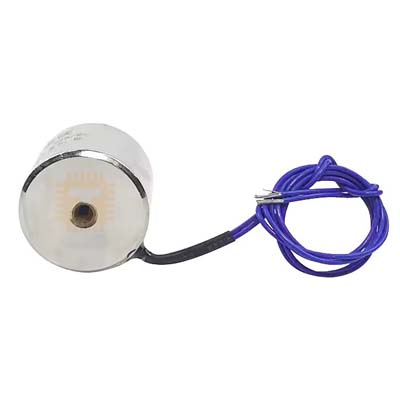

• Mounting Type: Central M4 mounting hole
• Body Diameter: 25 mm
• Height (Thickness): 20 mm
• Duty Cycle: Continuous (may require a heatsink at high temps)
• Operating Temp: -10°C to +60°C
