GS1299 Digital Stereo FM Radio Receiver DIY SMD Soldering Kit (MD0890) Products
| Name | GS1299 Digital Stereo FM Radio Receiver DIY SMD Soldering Kit |
| Code | MD0890 |
| Price | Rs.840.00 |
| In Stock | Yes |
| Package | MODULE |
Product Details
Specifications:
- Working voltage: 3.7-4.2VDC
- Support Headphones: In-ear Headphones
Required Tools
- Soldering iron
- Multimeter
- Solder wire
- Diagonal pliers
- Screwdriver
- Tweezer
Key Features:
- Small in appearance and novel in shape
- High sensitivity, low noise and strong anti-interference ability
- Support global frequency band (76-108MHz)
- Built-in rechargeable lithium battery and charging circuit, which can be charged with a mobile phone charger
- With working indicator (blue), charging indicator (red) and full indicator (blue)

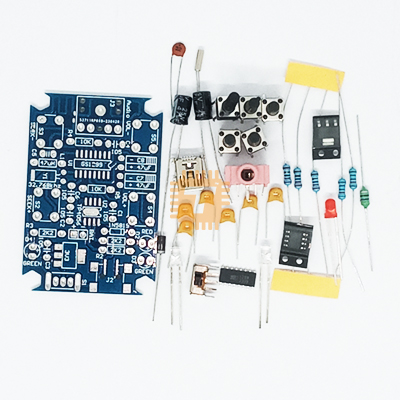

Component List
| Component name | Quantity |
| PCB board | 1 |
| Mini USB socket | 1 |
| 3.5mm Audio Stand | 1 |
| 6x6x12mm buttons | 5 |
| 12D07 Side dial switch | 1 |
| 3mm LED red glow red | 1 |
| 3mm LED White Hair Blue | 2 |
| 25V 47uF electrolytic capacitor | 2 |
| GS1299 chip | 1 |
| TP4056 chip | 1 |
| 1117-3.3V chip | 1 |
| 22pF Ceramic Capacitor | 1 |
| 105 Monolithic Capacitor | 6 |
| 32.768 KHz crystal oscillator | 1 |
| 47uH Colour Ring Inductor | 1 |
| 1N5819 Diode | 1 |
| 10k Resistor | 2 |
| 2.2k Resistor | 3 |
NOTE: You can connect either a Li-Ion 3.7V 18650 battery or a 3.7V LiPo battery. The circuit board has a charger in-built.
