| Name | JQ6500 MP3 Player Module 16Mbit |
| Code | MD0697 |
| Price | Rs.750.00 |
| In Stock | Yes |
| Package | MODULE |

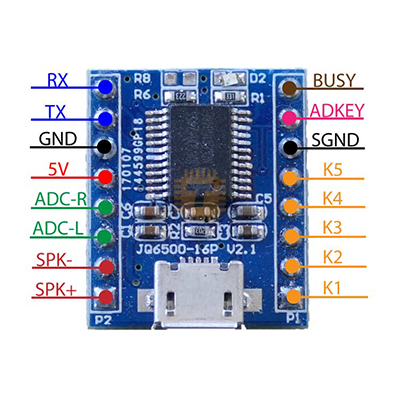

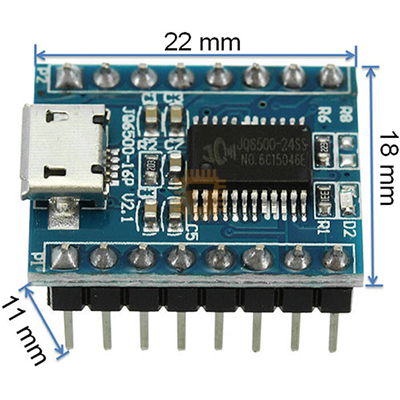

JQ6500 MP3 Voice sound module can play stereo MP3 files or standard mono audio files. The module has two different modes to operate in; serial communication mode (connecting to a microcontroller) or AD button control mode (module can be controlled with switches). If has an 2MB onboard flash memory which can store many MP3 files (probably reduced quality) via its USB port.
- 16Mbit (2MB) onboard flash memory
- Operating voltage: 3.5-5V DC
- Current rating: 20mA
- Speaker power: 8ohm/3W
- Supported sampling rate (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
- 24-bit DAC output
- 30 level volume adjust
- 10 EQ adjustable
- Two modes: Serial mode and AD button control mode
Arduino library and other information can be found here.
