The L79 series of three-terminal negative regulators is available in TO-220, TO-220FP and D²PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L78 positive standard series, they are particularly suited for split power supplies. If adequate heat sinking is provided, they can deliver over 1.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.

Features:

•  Output current up to 1.5 A
• Output voltages: -5, -8, -12, and -5 V
• Thermal overload protection
• Short-circuit protection
• Output SOA protection
• Output tolerance 2% (AC version) or 4% (C version) at 25 °C

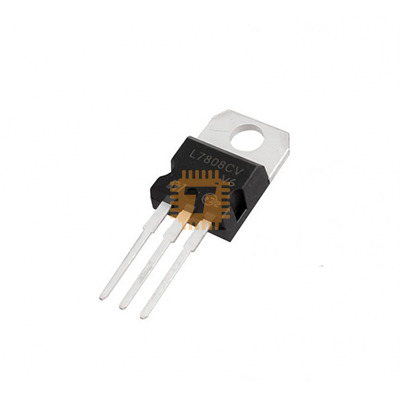

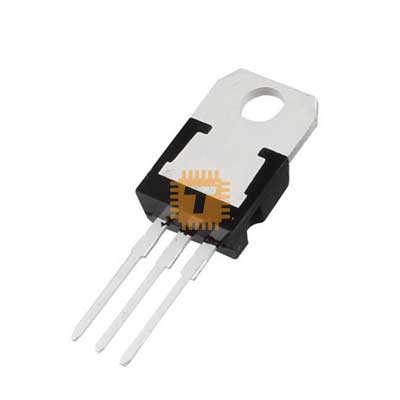

Package: TO-220

Link to datasheet: https://www.mouser.com/datasheet/2/389/cd00000450-1795462.pdf
