Technical parameters:

• Overcharge detection voltage: 3.75V±0.25V
• Overcharge release voltage: 3.45V±0.25V
• Over-discharge detection voltage: 2.1±0.05V
• Upper limit continuous current: 24A
• Overcurrent detection current: 42A
• Charging voltage: 3.7-3.9V

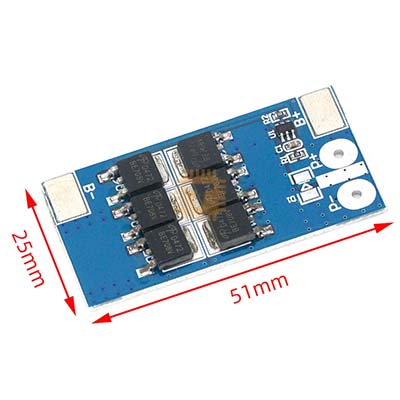

• Product Size: 25*50*3.5MM
• The main function:
• Overcharge protection, over discharge protection, short circuit protection, over-current protection.

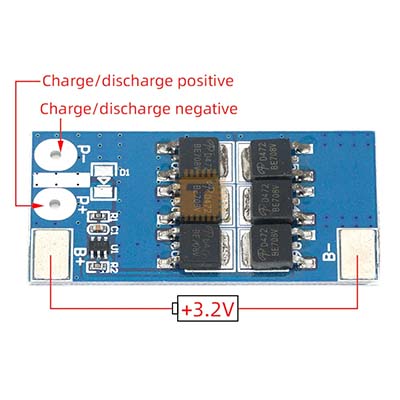

Wiring instructions:

• B+ connects to the positive battery.
• B-Connect the battery negative.
• P+ is the battery output positive input
• P- is the output negative input for the battery pack
