Overview:

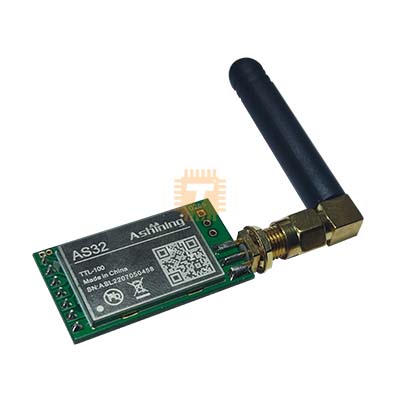

AS32-TTl-100 is a 100mW industrial wireless data tranceiver with high stability, operates at 433MHz.

The module adopt imported high-performence RF SX1278, Lora spread spectrum modulation, and TTL level output

has strong anti-interference ability and high stability. it has four operation modes and can be switch freely in the trun time.

In power saving mode, the current consumption is extreamly low, ideal for applications of ultra-low current consumption.

Feaqtures:

• Point-to-point transmission, transperent tranmisson, wake on radio
• Receiving sensitivity is up to -130dBm, range 3000 meters
• Sleep  current is only 1.5uA
• Ultra-low receiving current consumption
• Data encryption RSSI and voltage are readable
• Built-in multiple exception  handling mechanisms ensure the stable operation for a long time

Datasheet: http://m.asnwireless.com/uploads/201922129/Specification-of-AS32-TTL-100.pdf
