The Optimus Advanced Jeep 2WD is an ESP32-based DIY robotics kit for learning programming, electronics, and mobile robotics. It features a modular jeep chassis, two TT gear motors, steering servo, lights, buzzer, and an integrated ESP32 controller board with Wi-Fi and Bluetooth.

Specifications

• ESP32-WROOM-32D dual-core processor, up to 240 MHz
• Wi-Fi 802.11 b/g/n and Bluetooth 4.2 / BLE
• 2WD drive system with 2 × TT gear motors
• Onboard L9110S motor drivers, up to 700 mA per motor
• 2 × 18650 Li-ion battery supply, 7.4 V nominal
• Built-in charging and battery protection
• Micro-USB programming interface with CH340 USB-to-serial chip
• Connections for servo, ultrasonic sensor, line sensor, LEDs, buzzer, and NRF24L01 module

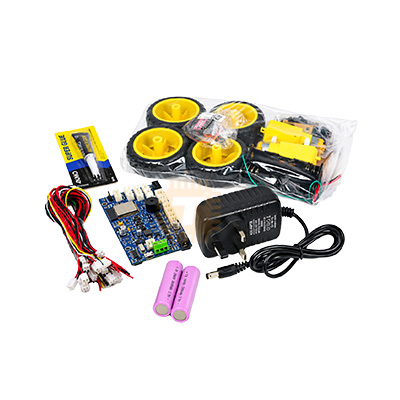

Items Included in the Pack

• Modular Jeep chassis and body parts
• ESP32 Car Controller Board
• 2 × TT gear motors
• MG90 steering servo motor kit
• 2 × Front wheels and 2 × Rear wheels
• Dual 18650 battery holder with centre-tap lead
• Rocker power switch
• 2 × White LEDs, 2 × Red LEDs, and 4 × Orange LEDs
• JST connection leads, motor brackets, steering components, cable ties, screws, and nuts
• 2 x 18650 Flat Top 3.7V 3200mA Li-ion Rechargeable Battery

Common Applications and Usage Tips

Suitable for STEM education, Arduino/ESP32 programming, Bluetooth-controlled cars, line-following robots, obstacle-avoidance projects, and hobby robotics. Use matched, fully charged 18650 batteries; check polarity before powering the board; install the CH340 driver if the USB port is not detected; and test motors, steering, LEDs, and sensors individually before uploading the final robot program.

NOTE: Ultrasonic sensor, Line sensor, NRF24L01 module, and assembly tools are not included

Scan the QR code printed on the box to obtain a detailed user guide providing all the necessary information to assemble and install electronic components. If you have any issue, please contact the manufacturer directly at [email protected].

Click here to download the mobile app to control the Optimus Advanced Jeep
